Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Additional Removal and Replacement Procedures
Quantum DXi6900 G1 User’s Guide 225

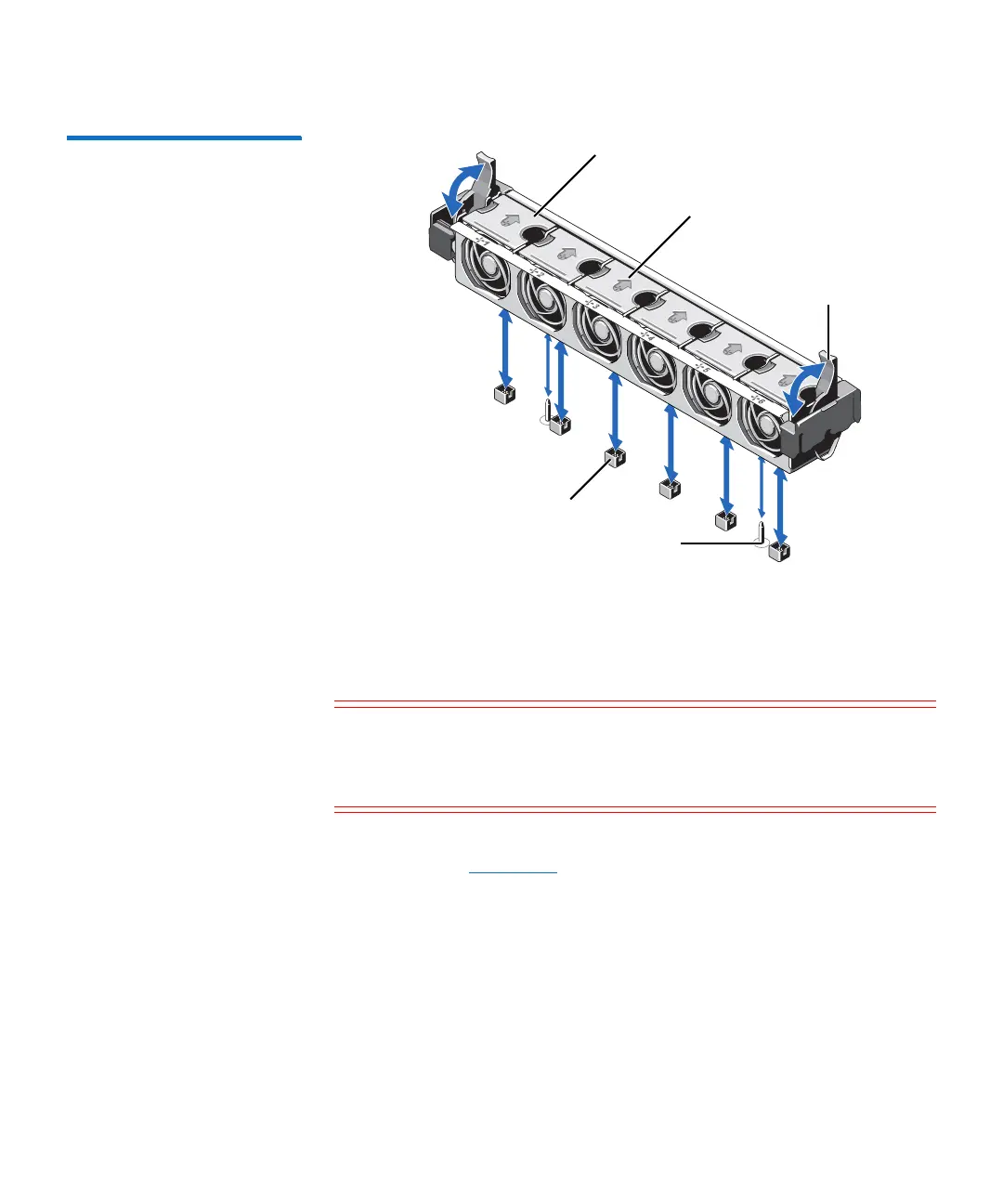

Figure 142 Removing and
Installing the Cooling Fan
Assembly
Replacing the Cooling Fan Assembly
To replace the cooling fan assembly:
Caution: Ensure that the cables are correctly installed and retained
by the cable retention bracket before installing the cooling
fan assembly. Incorrectly installed cables may get
damaged.
1 Align the cooling fan assembly slots with the guide pins on the
chassis (see
Figure 142).
2 Slide the cooling fan assembly into the chassis.
3 Lock the cooling fan assembly into the chassis by rotating the blue
release levers downward until firmly seated.
Cooling fan assembly
Cooling fans
Blue release
levers
Cooling fan connectors
Guide pins
