Quantum DXi6900

Chapter 1: Basic Operations
DXi6900 G1 Node
12 Quantum DXi6900 G1 User’s Guide

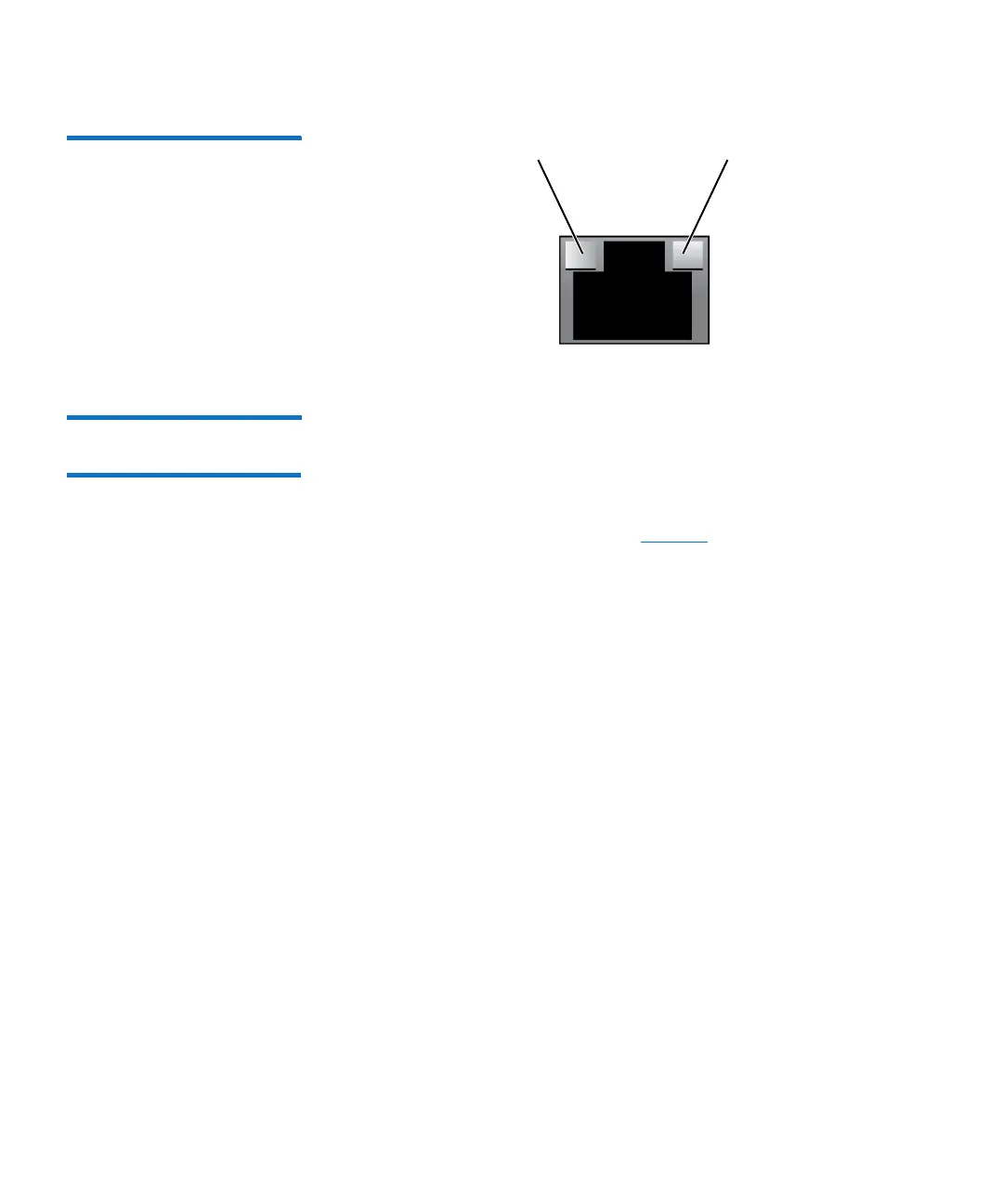

Figure 7 Ethernet Port LEDs
Node 10 GbE Ethernet
Port Indicators
Depending on the configuration, Quantum DXi6900 G1 systems include
one or two 10 GbE adapter cards with dual optical ports or dual Twinax
ports.
The 10 GbE adapter with dual optical or Twinax ports has two LED
indicators for each 10 GbE port (see
Figure 8):
• Link indicator
• Off - Indicates the port is not connected to the network.
• Green - Indicates the port is connected to the network at
10
Gbps speed.
• Yellow - Indicates the port is connected to the network at
1
Gbps speed.
• Activity Indicator
• Blinking - Indicates network data is being sent or received.
Link indicator Activity indicator
