Chapter 3: FRU Removal and Replacement Procedures
Replacing an Expansion Module ESM Canister
Quantum DXi6900 G1 User’s Guide 215
Obtaining a
Replacement Expansion
Module ESM Canister
Before beginning the replacement procedure, make sure that you have
the required replacement kit. The appropriate replacement Expansion
module ESM canister will be provided by Quantum Customer Support
(see
Figure 125).
You will need the following items to perform this procedure:
• Replacement Expansion module ESM canister provided by Quantum
Customer Support.
• ESD grounding wrist strap (included in the replacement kit)

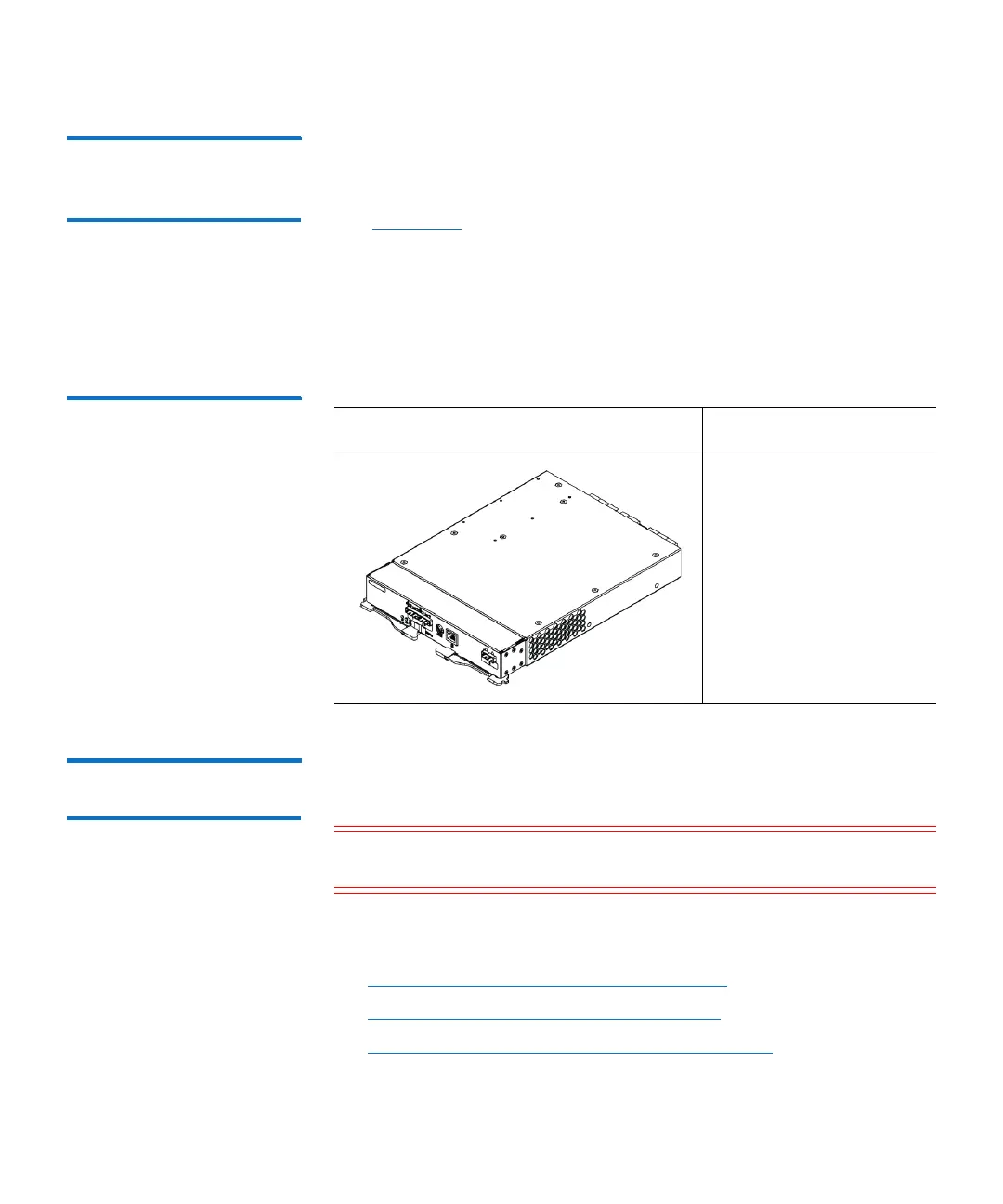

Figure 136 DXi6900 G1
Expansion Module ESM
Canister
Replacing an Expansion
Module ESM Canister
This section describes how to remove and replace the ESM canister in a
DXi6900 G1 Expansion module (EBOD).
Caution: Use appropriate ESD precautions, including the use of a
grounding strap, when performing this procedure.
Removing and replacing an Expansion module ESM canister includes the
following steps:
• Identifying a Failed Expansion Module ESM
• Removing a Failed Expansion Module ESM
• Installing a Replacement Expansion Module ESM
Illustration Description
Replacement Expansion
module (EBOD) ESM
canister
PN 9-02380-11
