Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing the Node Chassis
Quantum DXi6900 G1 User’s Guide 177

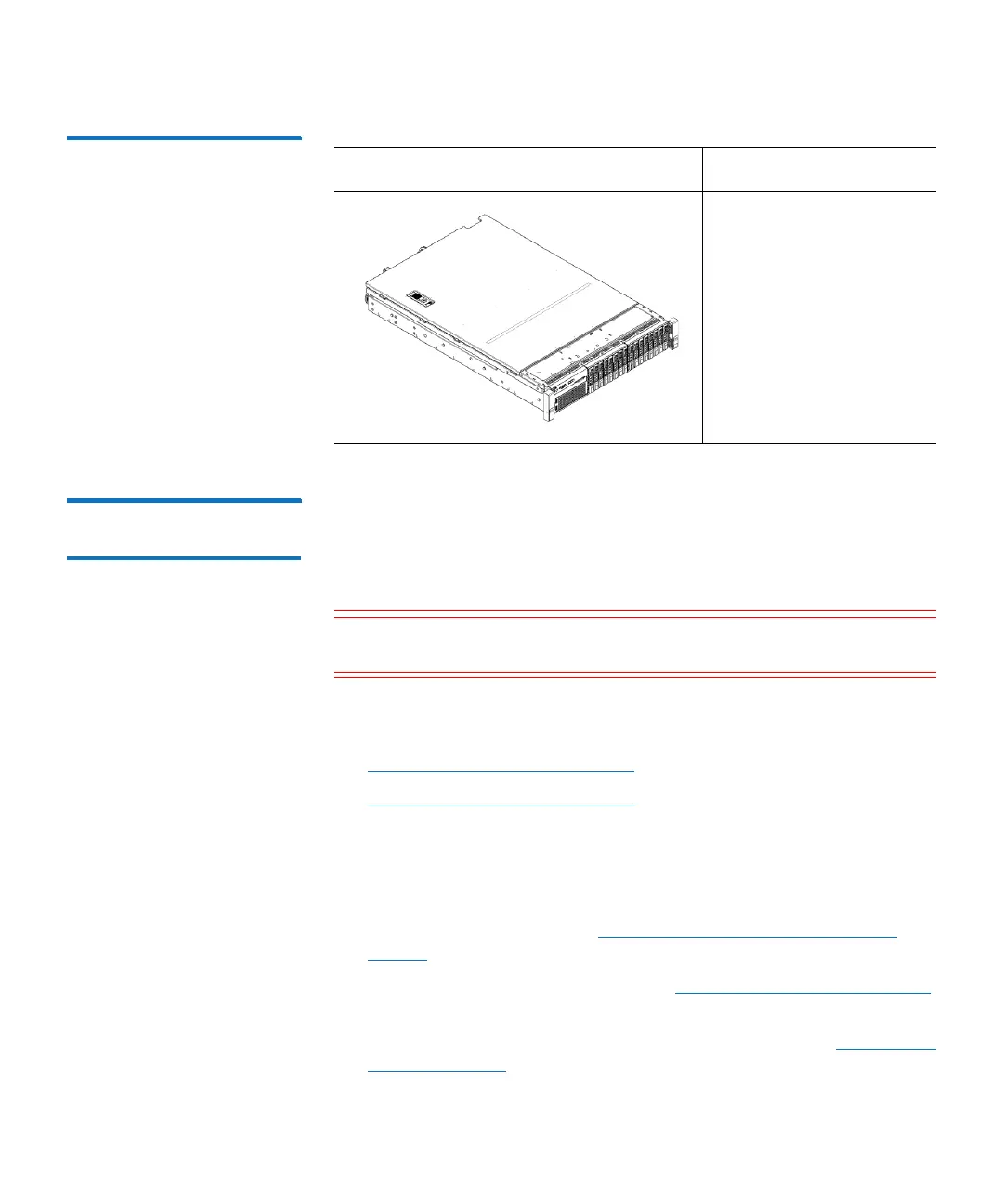

Figure 105 DXi6900 G1 Node
Chassis
Replacing the Node
Chassis
This section describes how to remove and replace the DXi6900 G1 Node
chassis. There are several items within the Node chassis that are not
replaceable as individual FRUs. If any of these components fail, the
entire Node chassis must be replaced.
Caution: Use appropriate ESD precautions, including the use of a
grounding strap, when performing this procedure.
Removing and replacing the DXi6900 G1 Node chassis includes the
following steps:
• Removing a Failed Node Chassis
• Removing a Failed Node Chassis
Removing a Failed Node Chassis
To re m ove t he D X i69 0 0 G1 Node chassis:
1 Shut down the system (see Turning On and Shutting Down the
System on page 23).
2 Remove the Node from the rack (see Opening and Closing the Node
on page 78).
3 Remove all hard drives from the failed Node chassis (see Replacing a
Node Hard Drive on page 90).
Illustration Description
Replacement Node
chassis
PN HHJ1G
