Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Expansion Cards
Quantum DXi6900 G1 User’s Guide 121

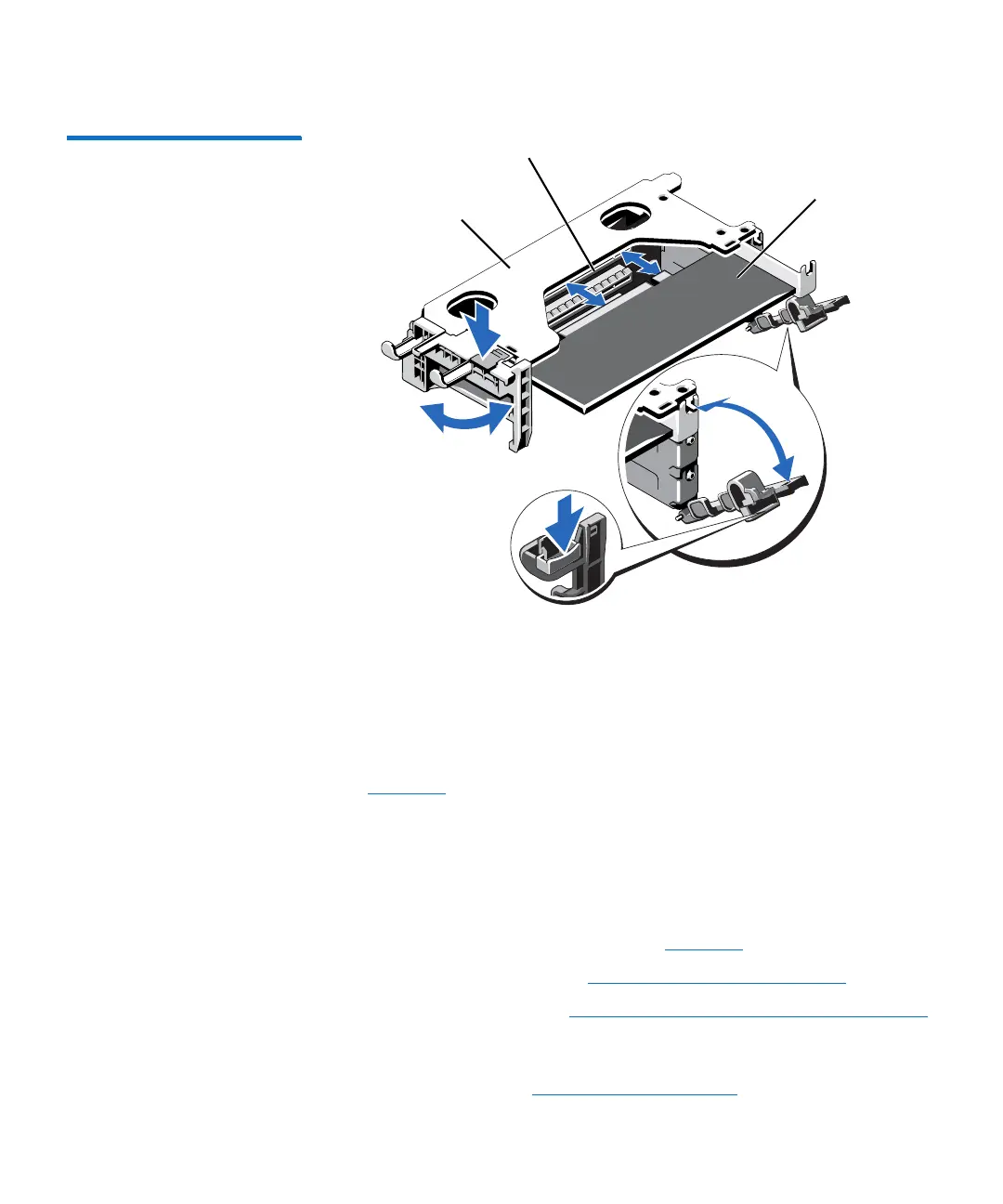

Figure 67 Removing and
Installing an Expansion Card in
Riser 1
Installing an Expansion Card in Riser 1
To install a replacement expansion card in riser 1:
1 Holding the card by its edges, position the card so that the card
edge connector aligns with the expansion card connector (see
Figure 67).
2 Insert the card edge connector firmly into the expansion card
connector until the card is fully seated.
3 Close the expansion card latches.
4 If applicable, connect any cables to the expansion card.
5 Install the expansion card riser (see Figure 66).
6 Close the Node cover (see Opening and Closing the Node).
7 Turn on the system (see Turning On and Shutting Down the System
on page 23).
8 Run Factory Detect Hardware from the Service Menu to detect the
new hardware (see
Factory Detect Hardware on page 44).
A
B
Riser 1 cage
Expansion card connector
Expansion card
