Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Additional Removal and Replacement Procedures
Quantum DXi6900 G1 User’s Guide 229

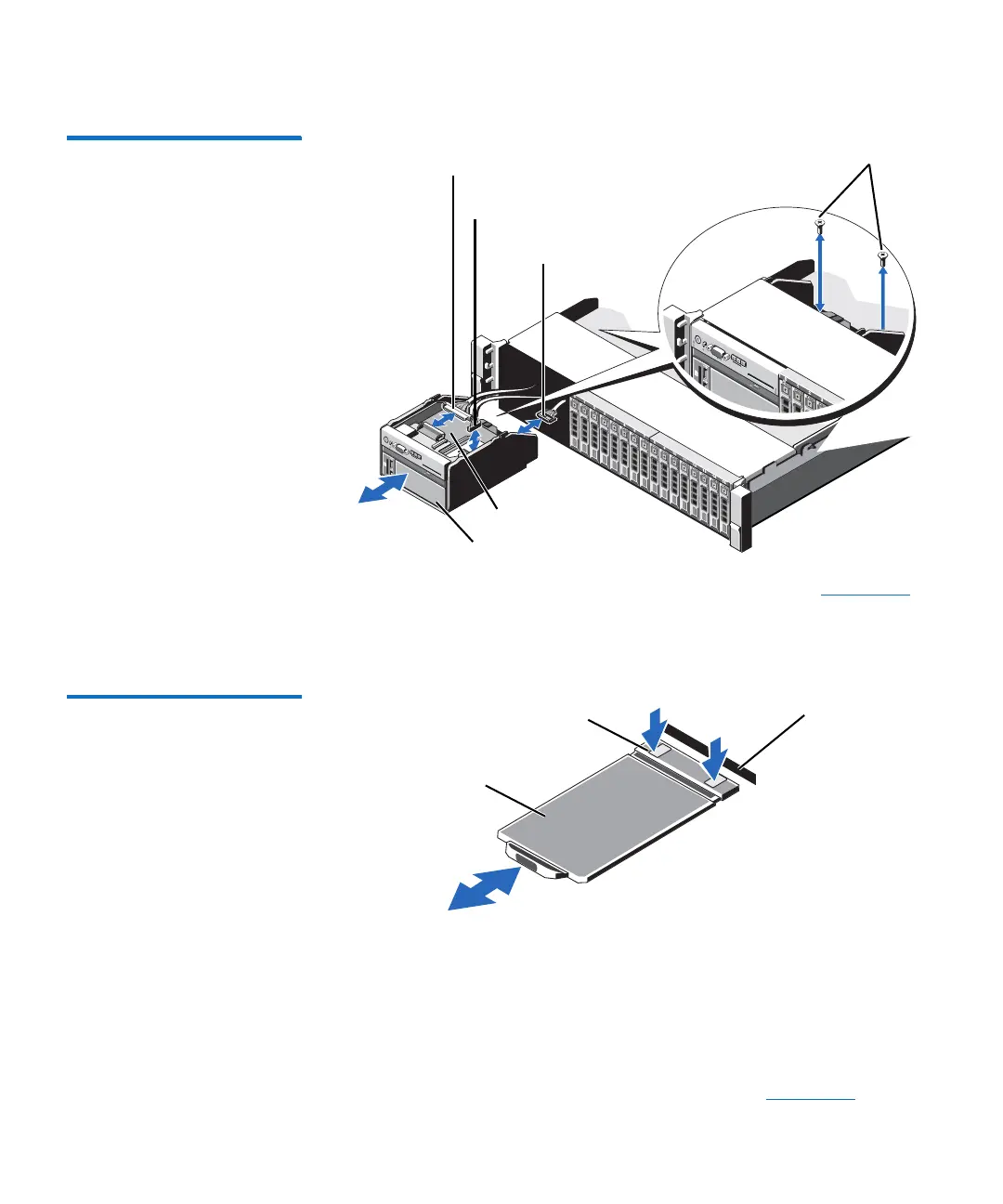

Figure 145 Removing and
Installing the Control Panel
4 Locate and press the tabs on the information tag (see Figure 146).
5 Push the information tag out of the slot to remove it from the
control panel.
Figure 146 Removing and
Installing the Information Tag
Replacing the Information Tag
To replace the information tag:
1 Replace the information tag from the failed Node chassis in the
control panel in the new Node chassis. To do this, push the
information tag into the control panel slot (see
Figure 146).
1
0
2
3
Screws
Control panel
Control panel board
Control panel cable
USB cable
vFlash cable
EST
Information tag
Slot
Tab s
