Chapter 3: FRU Removal and Replacement Procedures
Opening and Closing the Node
Quantum DXi6900 G1 User’s Guide 81
8 Press and hold the power button on the front of the Node for three
seconds to fully drain the system of stored power prior to removing
the cover (see
Figure 38).

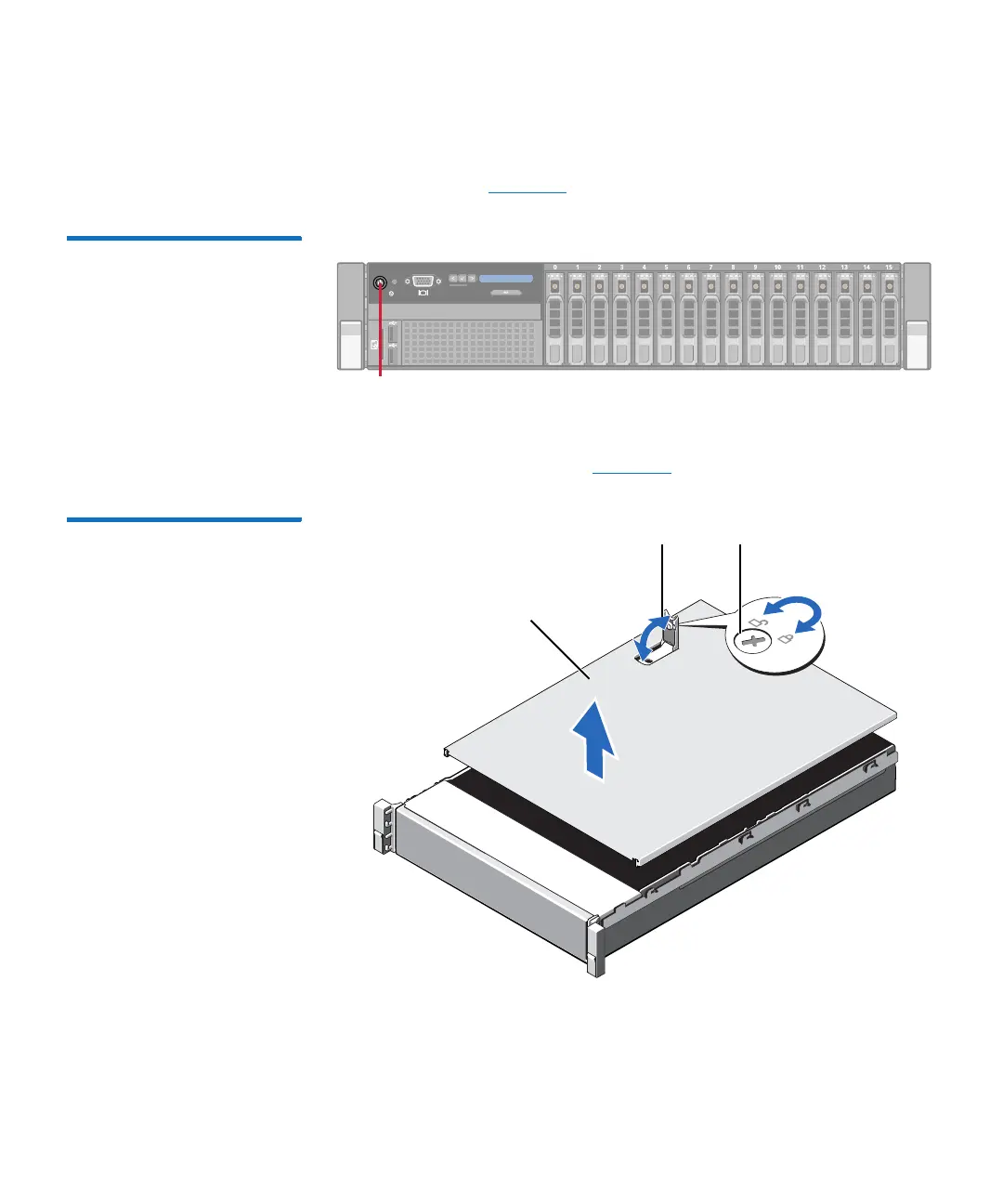

Figure 38 Node Power Button
9 On the Node cover, rotate the latch release lock counterclockwise to
the unlocked position (see
Figure 39).
Figure 39 Removing the Node
Cover
10 Lift the latch on top of the Node and slide the cover back.
11 Grasp the cover on both sides, and carefully lift the cover away from
the Node.
System Node (Front)
Power Button
Node cover
Latch Latch release lock
