Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Expansion Cards
Quantum DXi6900 G1 User’s Guide 123
3 Disconnect any cables connected to the expansion card.
4 Holding the touch points, lift the expansion card riser 2 or 3 from
the riser connector on the system board (see
Figure 68 and
Figure 69).

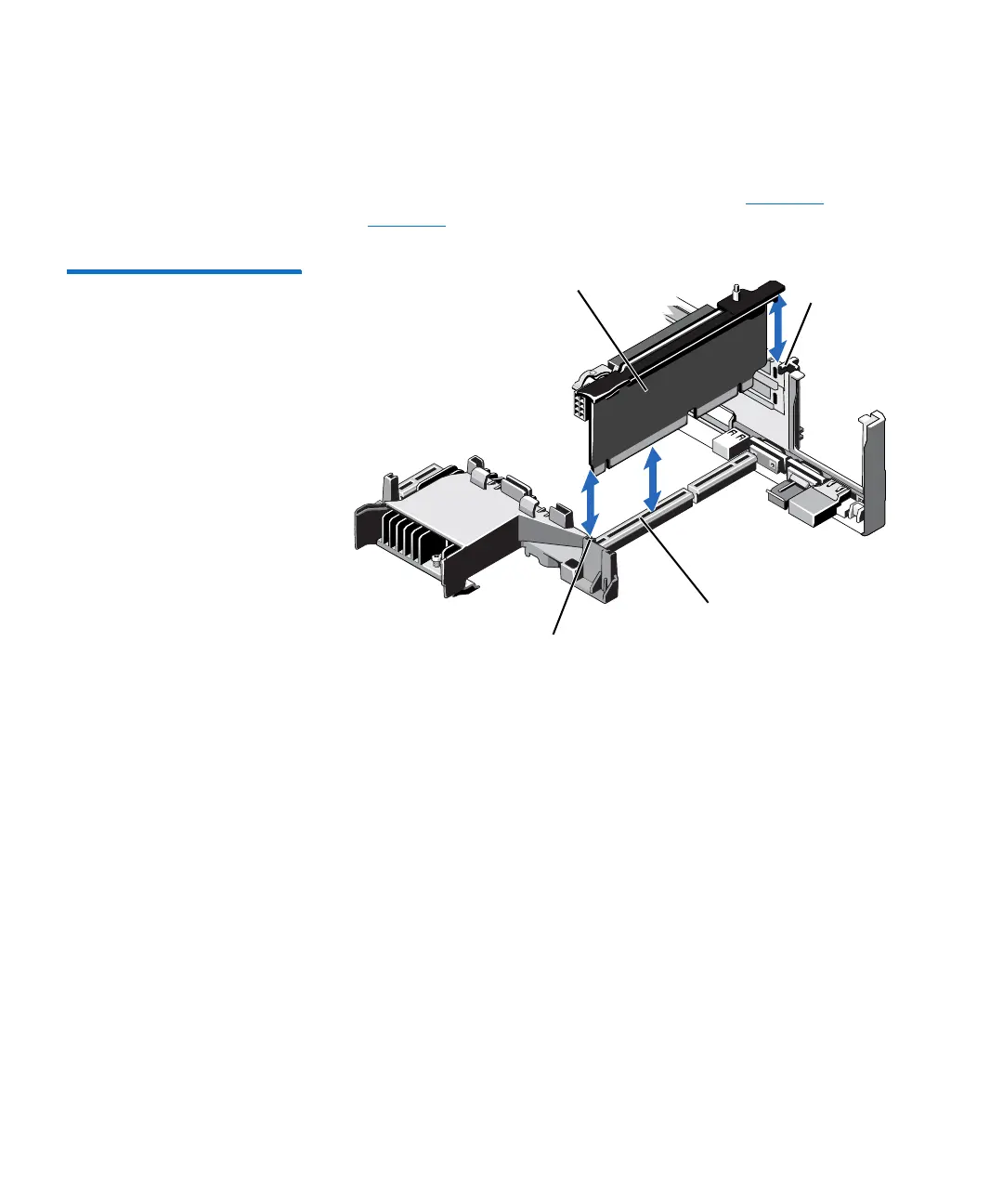

Figure 68 Removing and
Installing the Expansion Card
Riser 2
Expansion card riser 2
Back riser guide
Front riser guide
Expansion card riser 2
connector
