Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Expansion Cards
Quantum DXi6900 G1 User’s Guide 125

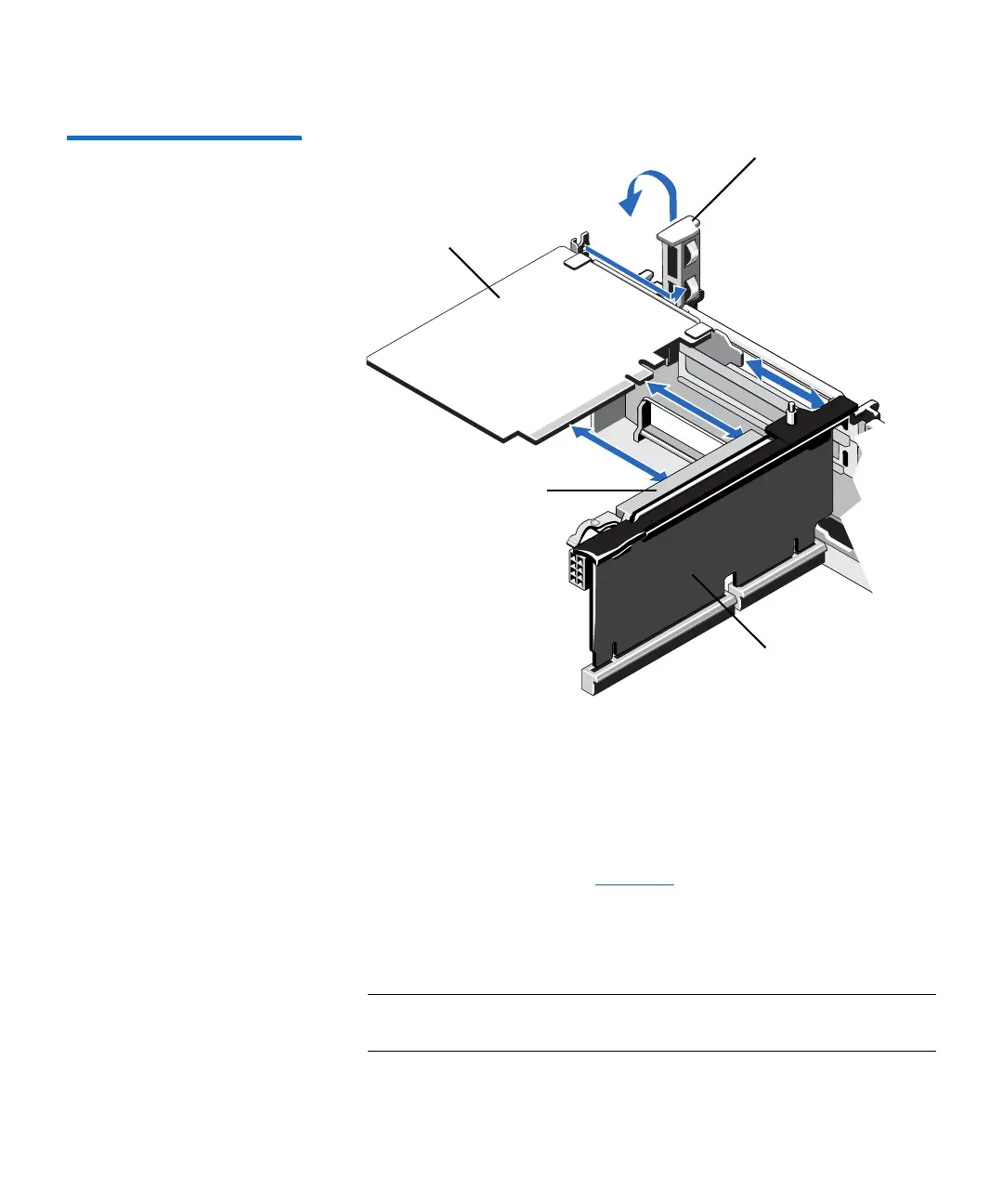

Figure 70 Removing and
Installing an Expansion Card in
Riser 2 or 3
Installing an Expansion Card in Riser 2 or 3
To install a replacement expansion card in riser 2 or 3:
1 Holding the card by its edges, position the card so that the
connector on the expansion card aligns with the expansion card
connector on the riser (see
Figure 70).
2 Insert the card-edge connector firmly into the expansion card
connector until the card is fully seated.
3 Replace the expansion card latch.
Note: To install a full length card, use the supports provided on
the cooling shroud.
4 If applicable, connect any cables to the expansion card.
Expansion card
Expansion card latch
Expansion card connector
Expansion card riser
