Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Expansion Cards
116 Quantum DXi6900 G1 User’s Guide
Obtaining a
Replacement Expansion
Card
Before beginning the replacement procedure, make sure that you have
the required replacement kit. The appropriate replacement expansion
card will be provided by Quantum Customer Support (see
Figure 65).
Note: If you are replacing the 8 Gb Fibre Channel cards with 16 Gb
Fibre Channel cards, see
8 Gb Fibre Channel to 16 Gb Fibre
Channel Card Swap on page 126.
You will need the following items to perform this procedure:
• Replacement expansion card kit provided by Quantum Customer
Support.
• ESD grounding wrist strap (included in the replacement kit)

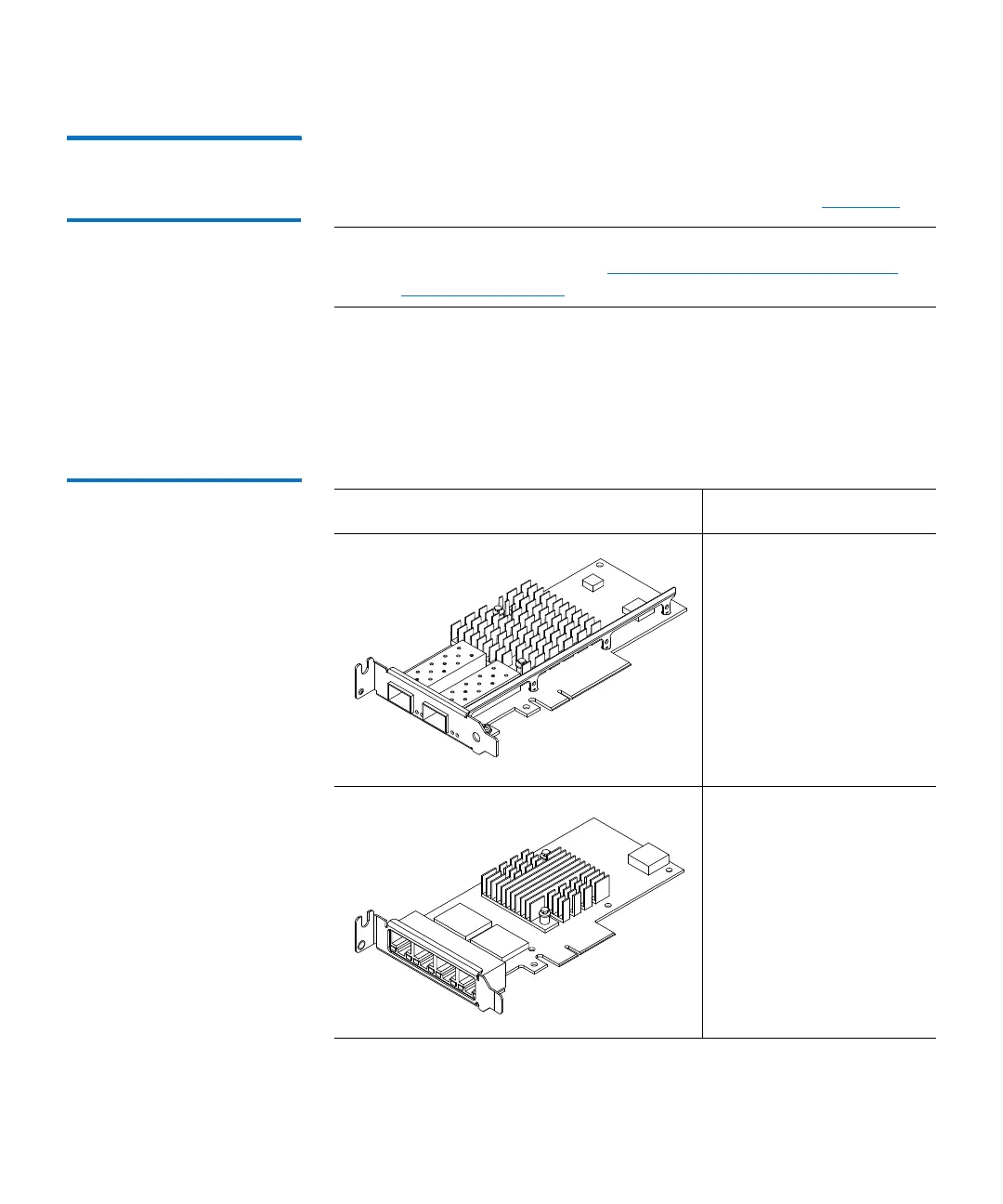

Figure 65 DXi6900 G1 Node
Expansion Cards
Illustration Description
Replacement dual port
10 GbE card (Intel X520
DA2)
PN FTKMT
Replacement quad port
1 GbE card (Intel i350)
PN 9YD6K
