Removing and
Installing the Cable
Retention Bracket
To remove and replace the cable retention bracket, refer to the
following procedures:
• Removing the Cable Retention Bracket
• Replacing the Cable Retention Bracket
Removing the Cable Retention Bracket
To remove the cable retention bracket:
1 Remove all cables routed through the cable retention bracket (see
Figure 144).
2 Press the tab and slide the cable retention bracket toward the front
of the chassis to release it from the chassis.
3 Lift the cable retention bracket out of the chassis.

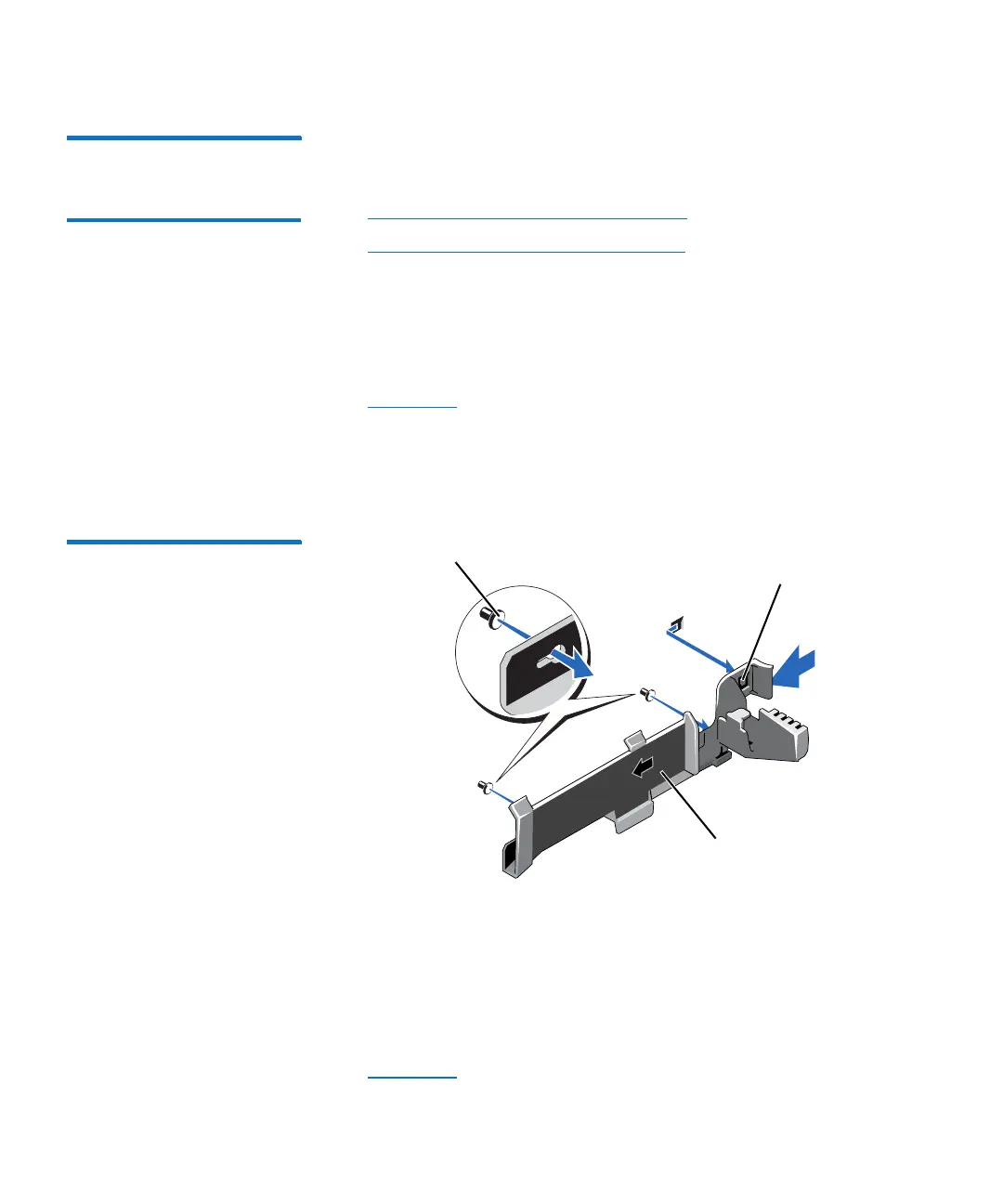

Figure 144 Removing and
Installing the Cable Retention
Bracket
Replacing the Cable Retention Bracket
To replace the cable retention bracket:
1 Using alignment pins as guide, slide the cable retention bracket
along the chassis wall until the tab snaps into place (see
Figure 144).
Alignment pins
Tab
Cable retention bracket
