Chapter 3: FRU Removal and Replacement Procedures
Opening and Closing the Node
Quantum DXi6900 G1 User’s Guide 85

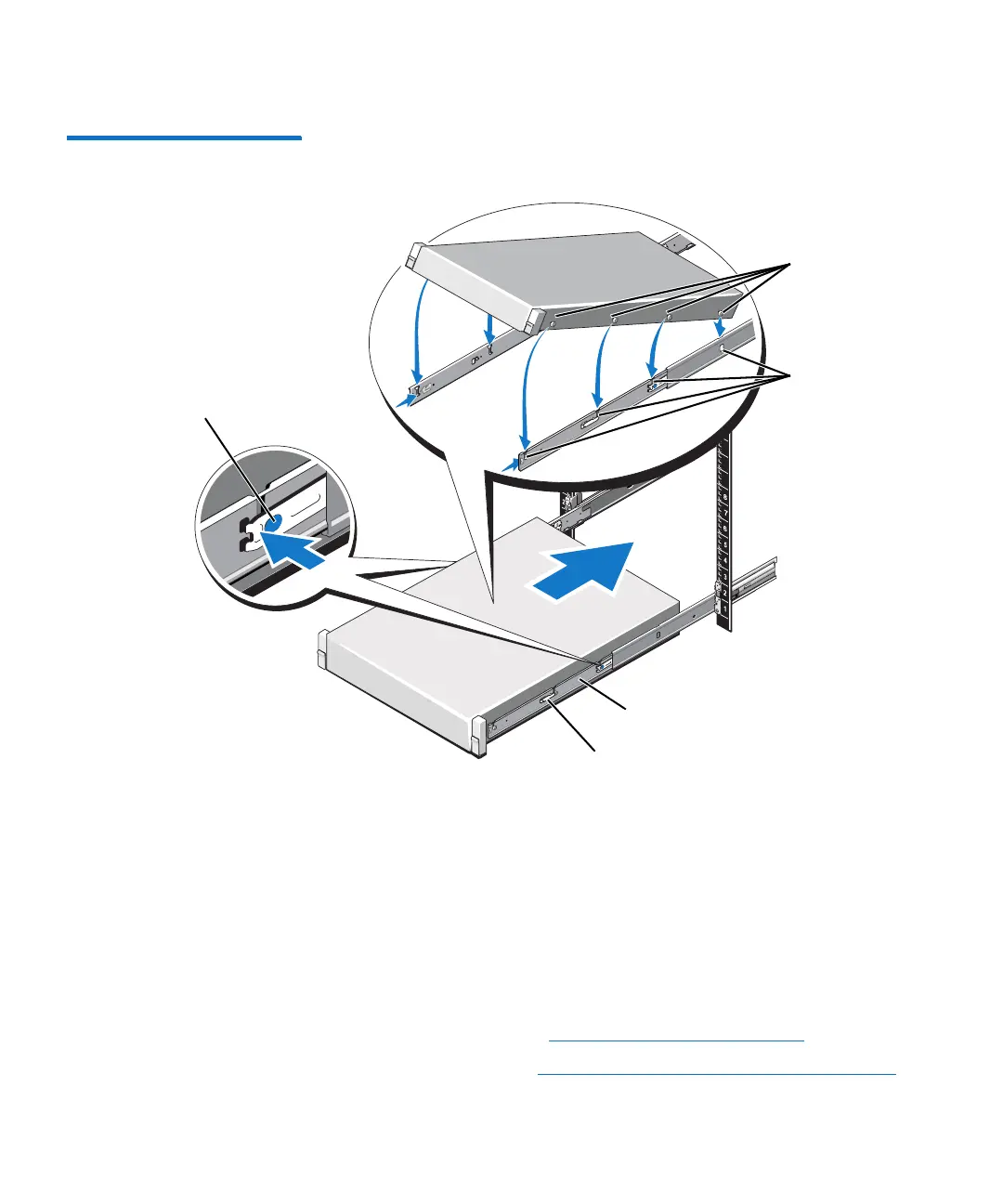

Figure 43 Installing the
DXi6900 G1 Node in the Rack
8 Locate the rear rail standoff on each side of the system and lower
them into the rear J-slots on the slide assemblies.
9 Rotate the Node downward until all the rail standoffs are seated in
the J-slots.
10 Push the Node inward until the lock levers click into place.
11 Press the slide-release lock buttons on both rails and slide the Node
into the rack.
12 Reconnect all power, SAS, Ethernet, and Fibre Channel cables on the
rear of the Node (see
Appendix A, Cabling Diagrams).
13 Turn on the system (Turning On and Shutting Down the System on
page 23).
Inner slide rails
Rear rail standoffs
Rear rail J-slots
Slide-release lock button
Lock lever
