Chapter 3: FRU Removal and Replacement Procedures
Replacing an Array Module BBU
212 Quantum DXi6900 G1 User’s Guide

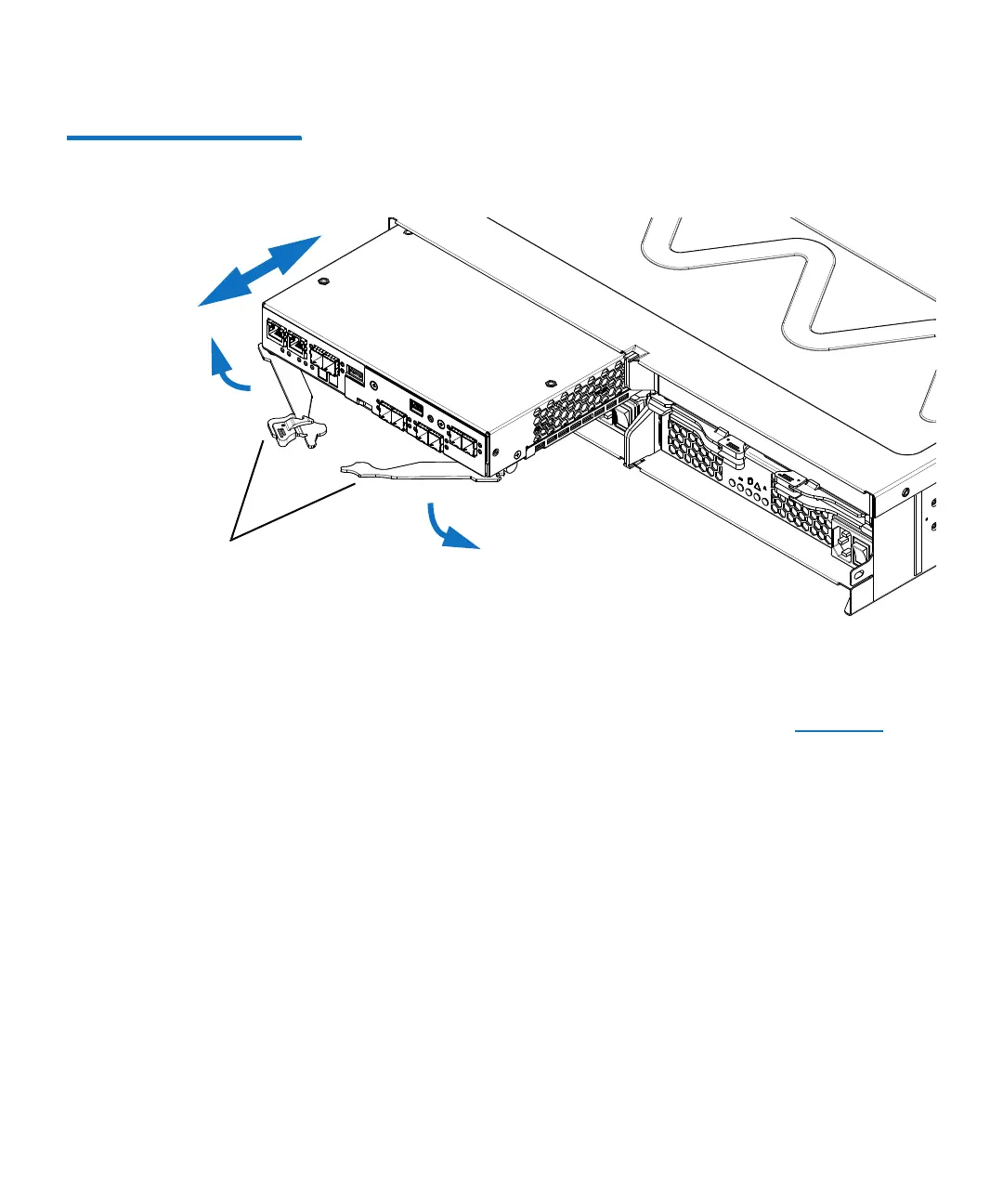

Figure 134 Removing and
Installing an Array Module
Controller
4 Insert the controller air blocker into the open controller slot to make
sure that correct airflow is maintained.
5 Press down on both of the top cover releases, and slide the top
cover out to the rear of the controller canister (see
Figure 135).
Array module controller handles
