Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing the Node Integrated Storage Controller
138 Quantum DXi6900 G1 User’s Guide

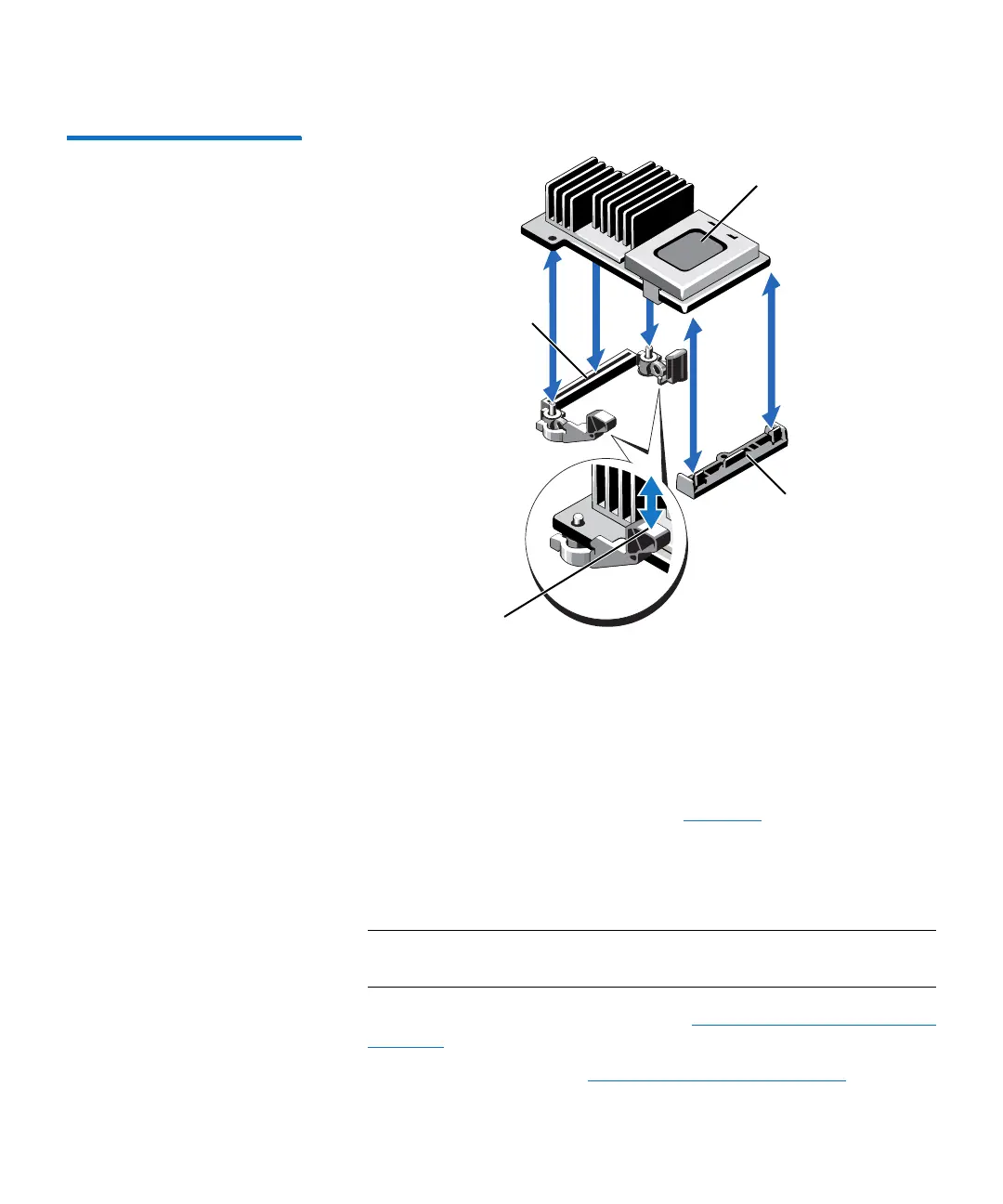

Figure 79 Removing and
Installing the Integrated
Storage Controller Card
Installing a Replacement Integrated Storage Controller
To install the replacement integrated storage controller in the DXi6900
G1 Node:
1 Align one end of the integrated storage controller card with the
card holder on the system board (see
Figure 79).
2 Lower the other end of the card into the storage controller card
holder on the system board.
3 Press the card down until it is fully seated.
Note: When the card is fully seated, the release levers snap over
the edge of the card.
4 Replace the expansion card riser 1 (see Replacing an Expansion Card
in Riser 1).
5 Close the Node cover (see Opening and Closing the Node).
Storage connector on
system board
Storage controller card
Storage controller
card holder
Release levers
