Quantum DXi6900

Chapter 1: Basic Operations
DXi6900 G1 Node
Quantum DXi6900 G1 User’s Guide 11

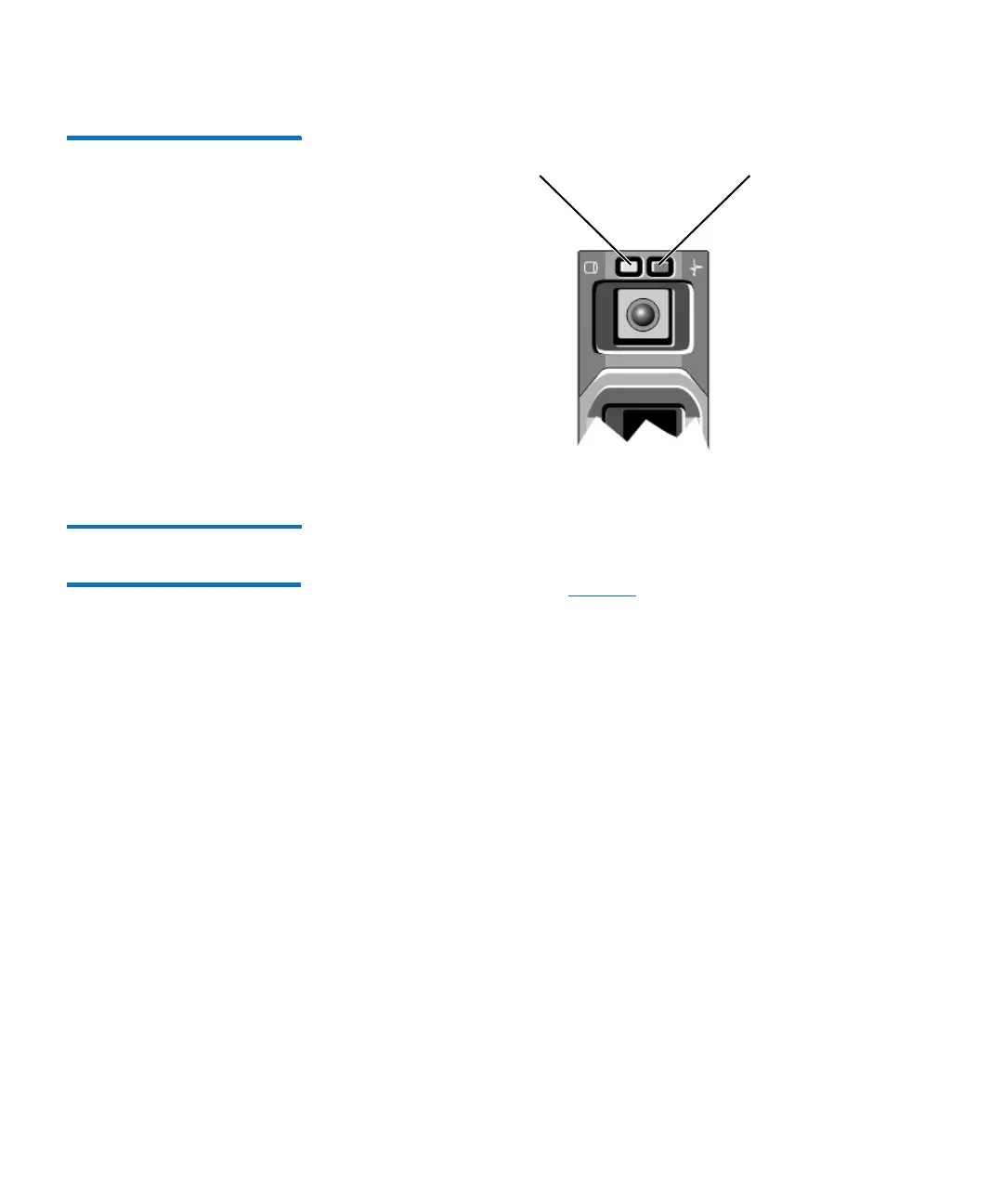

Figure 6 Hard Drive Carrier
LEDs
Node 1 GbE Ethernet
Port Indicators
Depending on the configuration, Quantum DXi6900 G1 systems include
four or eight 1 GbE Ethernet ports. Each 1 GbE port on the back panel
has two LED indicators (see
Figure 7):
• Link indicator
• Off - Indicates the port is not connected to the network.
• Green - Indicates the port is connected to the network at
maximum speed (1Gbps).
• Amber - Indicates the port is connected to the network at less
than its maximum port speed.
• Activity Indicator
• Blinking green - Indicates network data is being sent or
received.
Drive activity
indicator (green)
Drive status indicator
(green and amber)
