Replacing Array or Expansion Module Power Supplies
200 Quantum DXi6900 G1 User’s Guide
Removing a Failed Power Supply from an Array or Expansion
Module
To remove the failed power supply from the DXi6900 G1 Array module
(RBOD) or Expansion module (EBOD):
Caution: Make sure to remove the failed power supply (service
action LED is amber) and not the functioning power supply
(AC enabled LED is green). If you remove the functioning
power supply, power will be lost to the Array or Expansion
module, and data loss may occur.
1 Disconnect the power cable from the power source and the failed
power supply (see
Figure 124).
2 Pull the handles out and toward the sides of the power supply.
3 Slide the power supply out of the chassis.

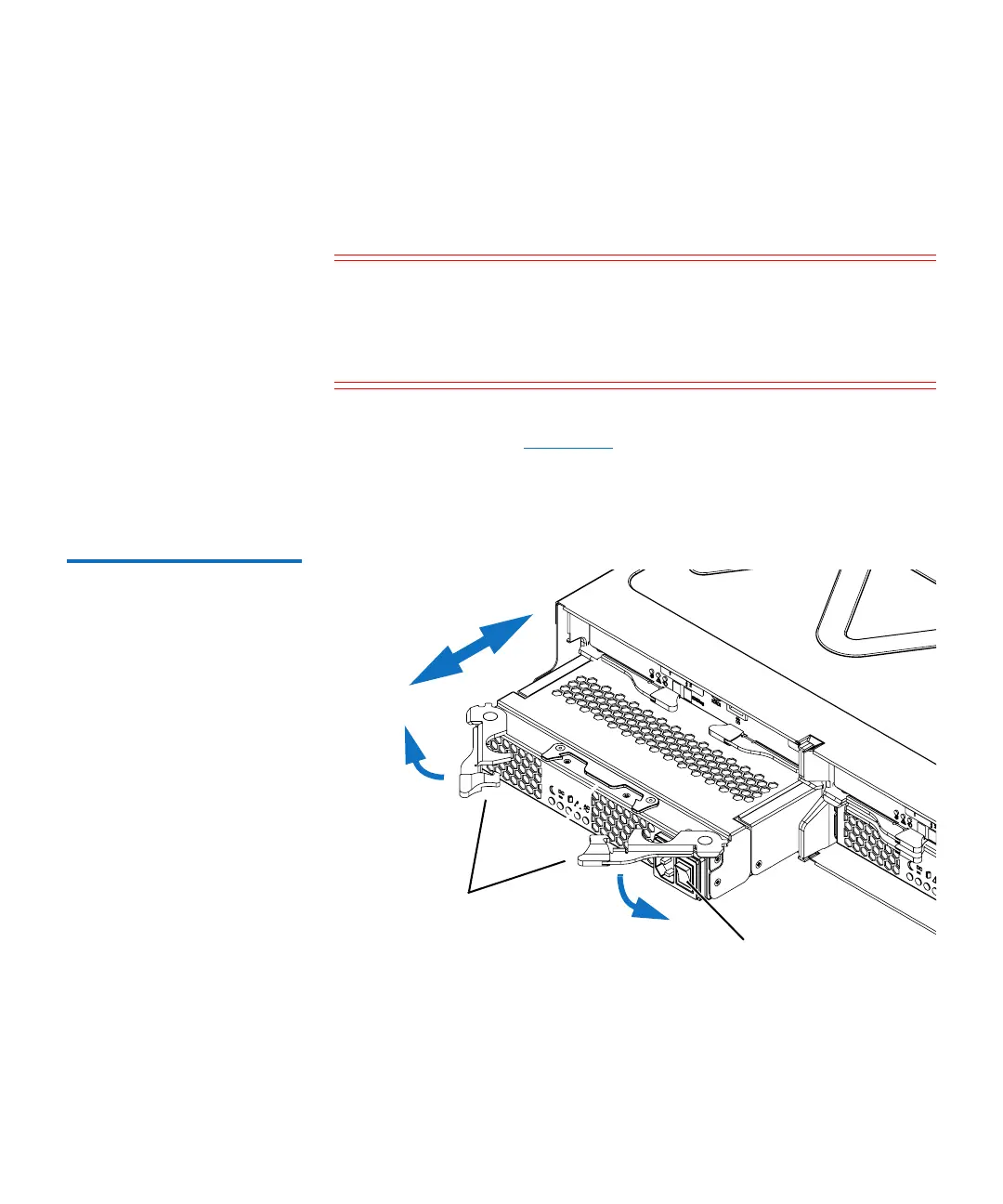

Figure 124 Removing and
Installing an Array or
Expansion Module Power
Supply
Expansion Module power
supply handles
Power switch
