Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing the Node Network Daughter Card
148 Quantum DXi6900 G1 User’s Guide
• Replacing the Network Daughter Card
Obtaining a
Replacement Network
Daughter Card
Before beginning the replacement procedure, make sure that you have
the required replacement kit. The appropriate replacement network
daughter card will be provided by Quantum Customer Support (see
Figure 89).
You will need the following items to perform this procedure:
• Replacement network daughter card kit provided by Quantum
Customer Support.
• #2 Phillips screwdriver
• ESD grounding wrist strap (included in the replacement kit)

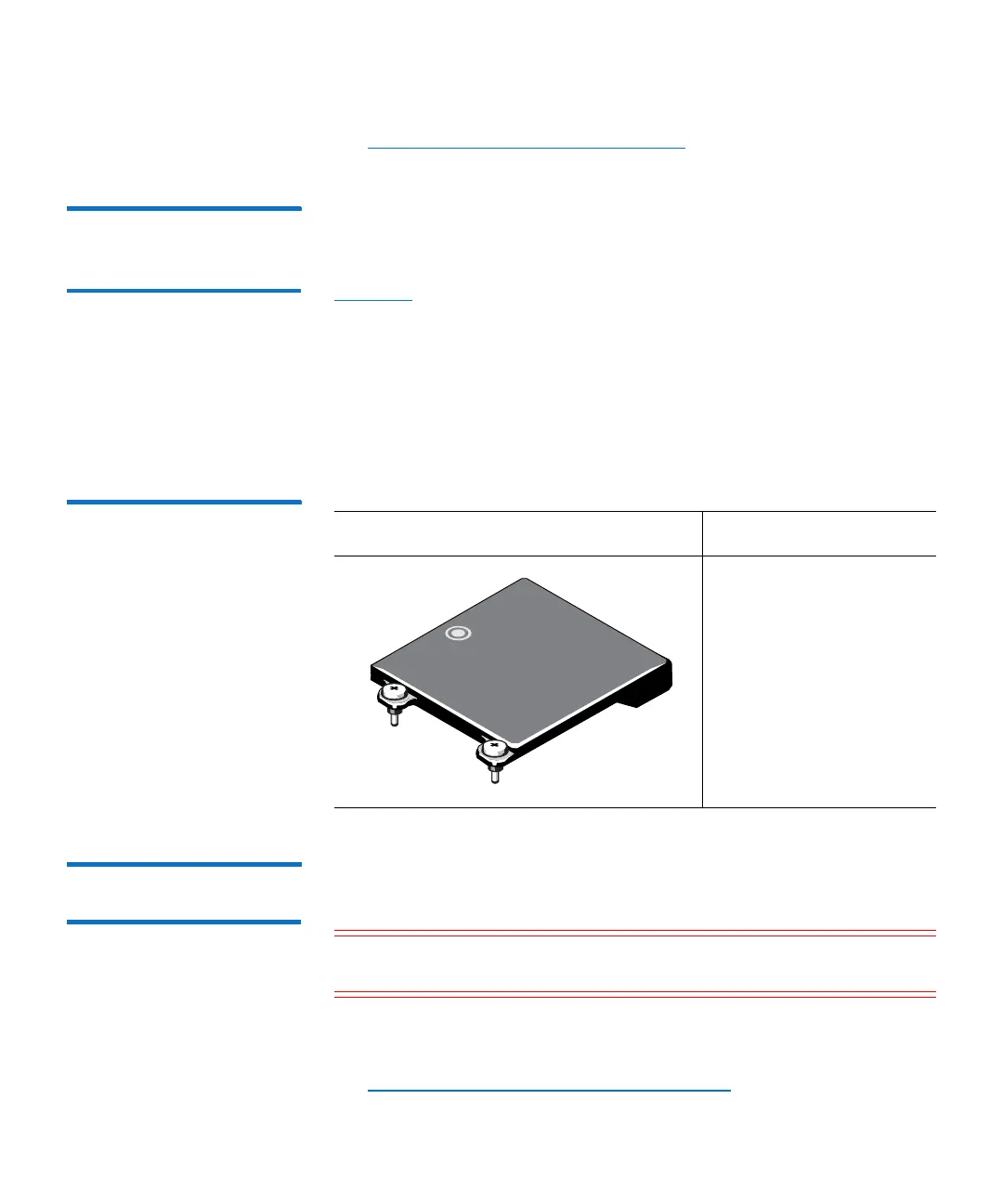

Figure 89 DXi6900 G1 Node
Network Daughter Card
Replacing the Network
Daughter Card
This section describes how to remove and replace the network daughter
card in the DXi6900 G1 Node.
Caution: Use appropriate ESD precautions, including the use of a
grounding strap, when performing this procedure.
Removing and replacing the network daughter card in the Node
includes the following steps:
• Identifying a Failed Network Daughter Card
Illustration Description
Replacement network
daughter card
PN R1XFC
