Array Module Rear
Panel Indicators
LED indicators and buttons are located on the back of the Array
modules (RBODs) (see
Figure12 and Ta b le 6).

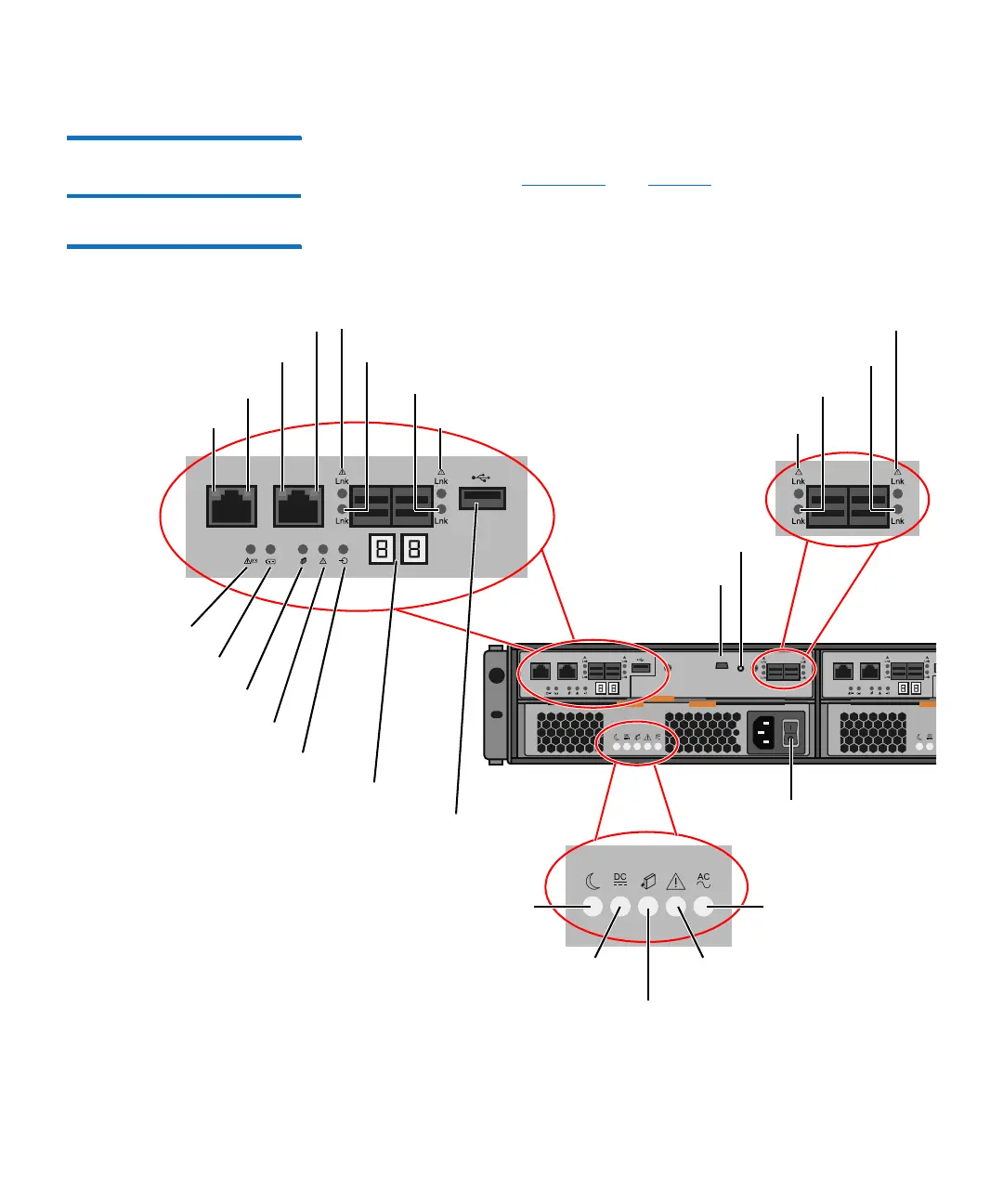

Figure 12 Array Module LED
Indicators – Rear Panel
Port 1
Port 2
ID/
Diag
|O|O|
Port 1 Port 2
ID/
Diag
Port 1
Port 2
ID/
Diag
Standby power
Service action allowed
DC enabled Service action required
AC enabled
Power switch
SAS host 1 fault
SAS host 1 activity
SAS host 2 activity
SAS host 2 fault
Ethernet 2 activity
Ethernet 2 link rate
Ethernet 1 activity
Ethernet 1 link rate
Battery fault
Battery charging
Service action allowed
Service action required
Cache active
Seven segment display
SAS expansion 2 fault
SAS expansion 2 activity
SAS expansion 1 activity
SAS expansion 1 fault
USB
Reset Switch
Mini USB
