Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Expansion Cards
Quantum DXi6900 G1 User’s Guide 133

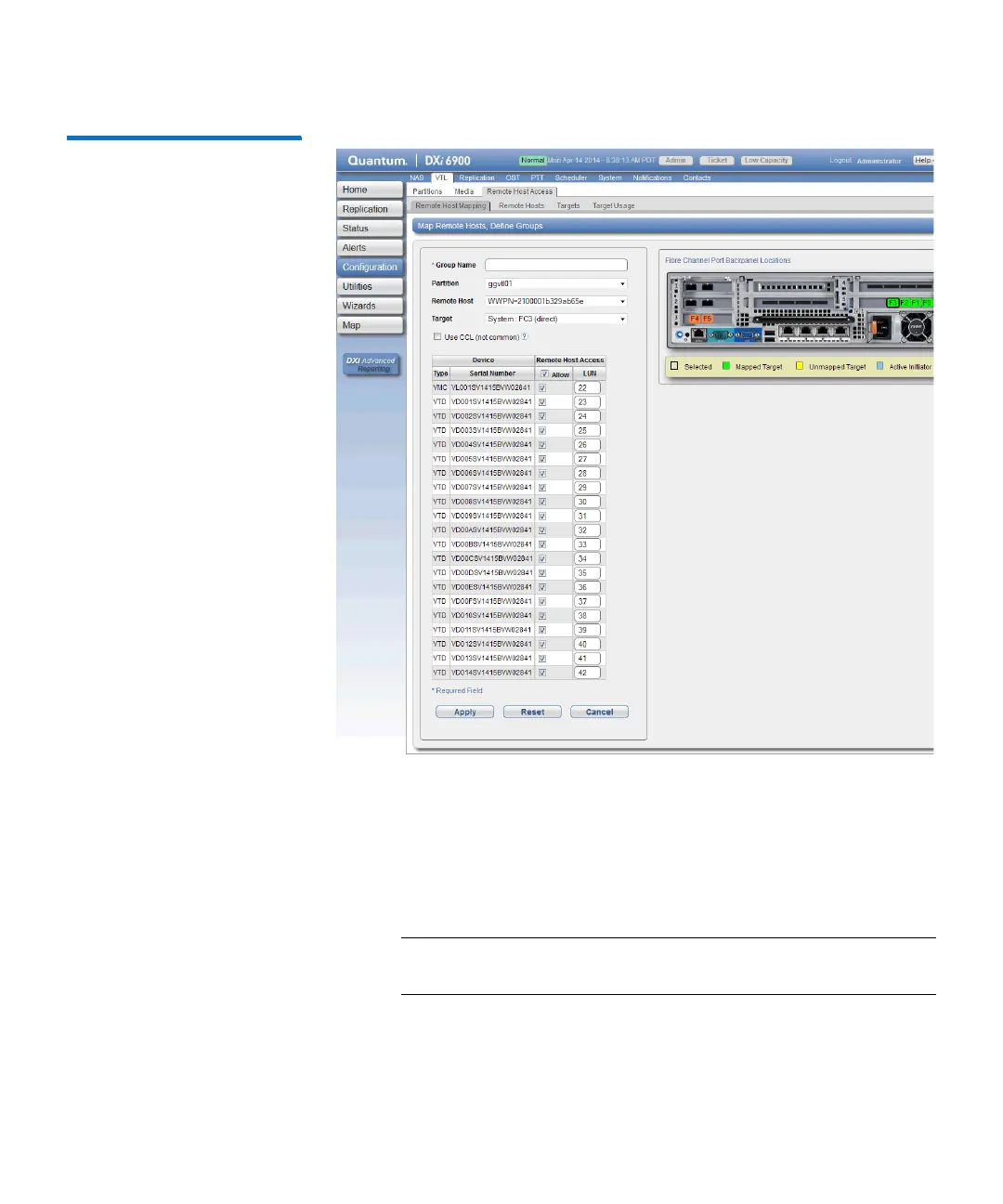

Figure 75 Map Remote Hosts,
Define Groups Page
11 Enter information about the host access group:
• Group Name - Enter a name for the group.
• Partition - Select the partition to associate with the group.
• Remote Host - Select the host (initiator) to associate with the
group.
Note: You must configure a host before it is available in the
Host drop-down box.
• Targ et - Select the target (port) to associate with the group.
The Backpanel Locations section displays a graphical
representation of the Fibre Channel and Ethernet ports as they
