Chapter 3: FRU Removal and Replacement Procedures
Replacing an Array Module BBU
210 Quantum DXi6900 G1 User’s Guide

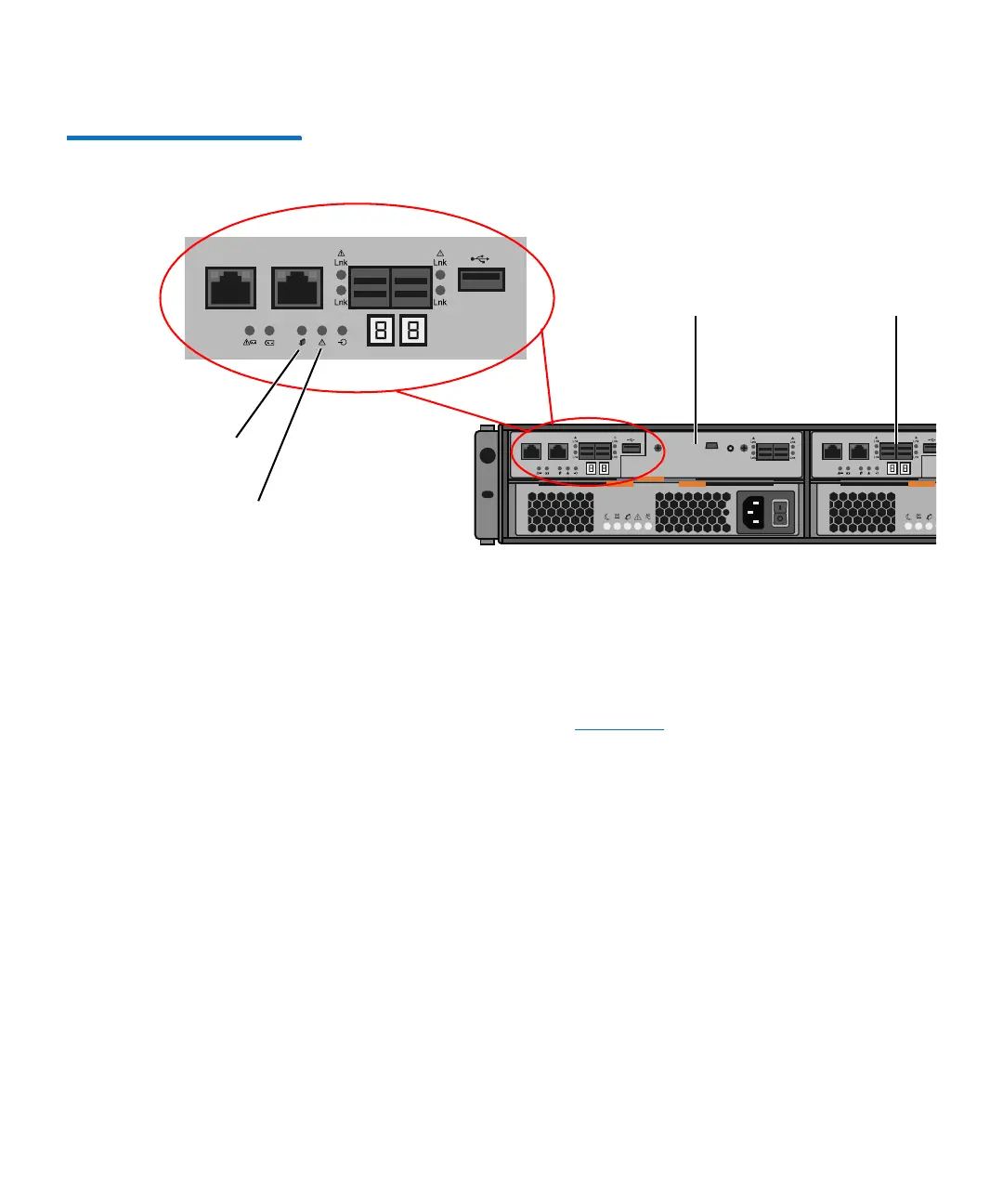

Figure 132 Array Module
Controller Failure LEDs
Removing a Failed Array Module BBU
To remove the failed Array module BBU:
1 Prepare the controller air blocker by removing it from the packaging
and folding it inward at right angles so it is ready to insert into the
open controller slot (see
Figure 128).
Port 1
Port 2
ID/
Diag
|O|O|
Port 1 Port 2
ID/
Diag
Service action required
Service action allowed
Controller A Controller B
