Chapter 3: FRU Removal and Replacement Procedures
Replacing the Node Integrated Storage Controller Battery
146 Quantum DXi6900 G1 User’s Guide

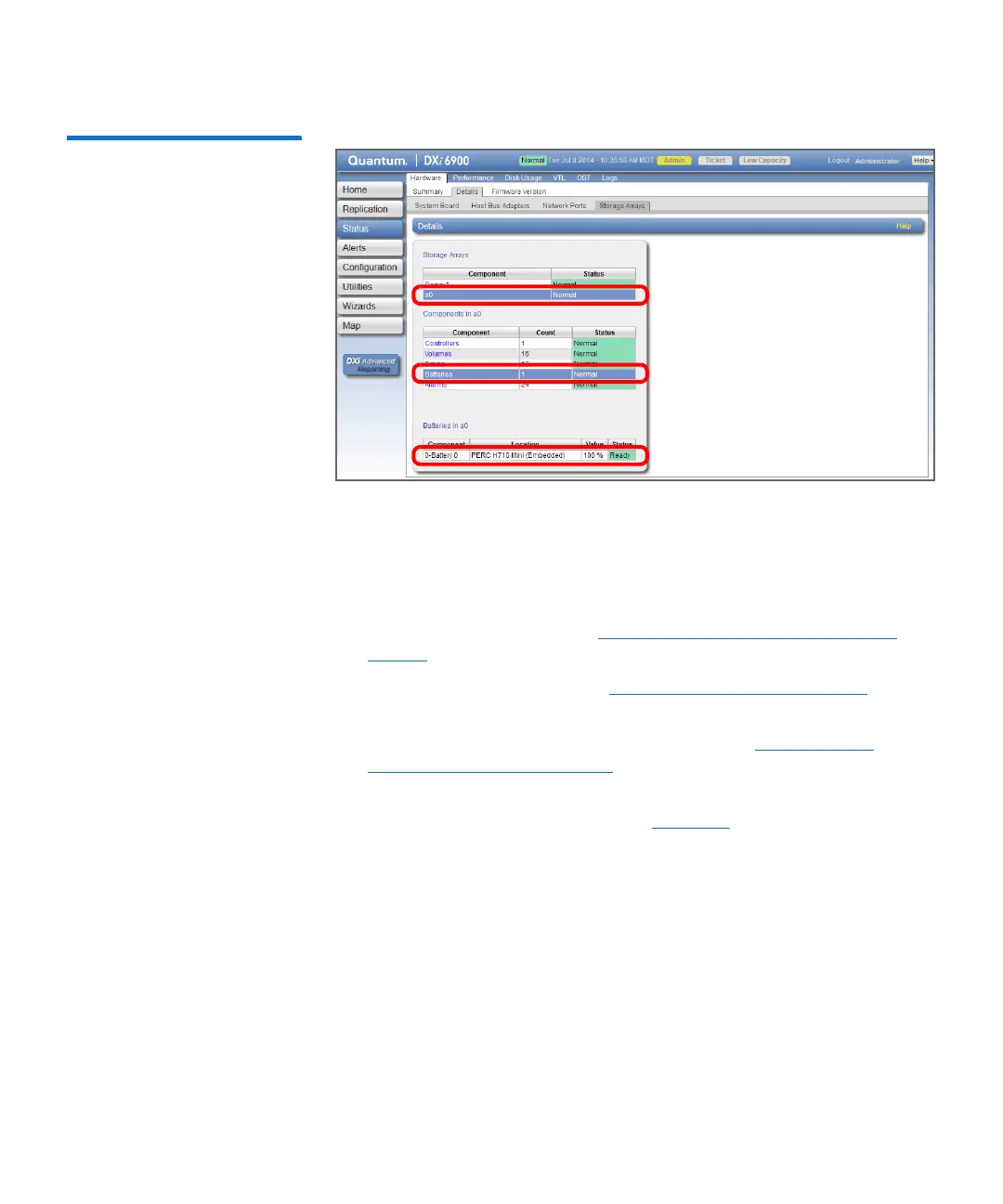

Figure 87 Checking Integrated
Storage Controller Battery
Status
Removing a Failed Integrated Storage Controller Battery
To remove the integrated storage controller battery from the DXi6900
G1 Node:
1 Shut down the system (see Turning On and Shutting Down the
System on page 23).
2 Remove the Node cover (see Opening and Closing the Node on
page 78).
3 Remove the integrated storage controller (see Replacing the
Integrated Storage Controller on page 136).
4 Unplug the battery cable and remove the battery from the
integrated storage controller (see
Figure 88).
