Quantum DXi6900

Chapter 3: FRU Removal and Replacement Procedures
Replacing Node Cooling Fans
102 Quantum DXi6900 G1 User’s Guide

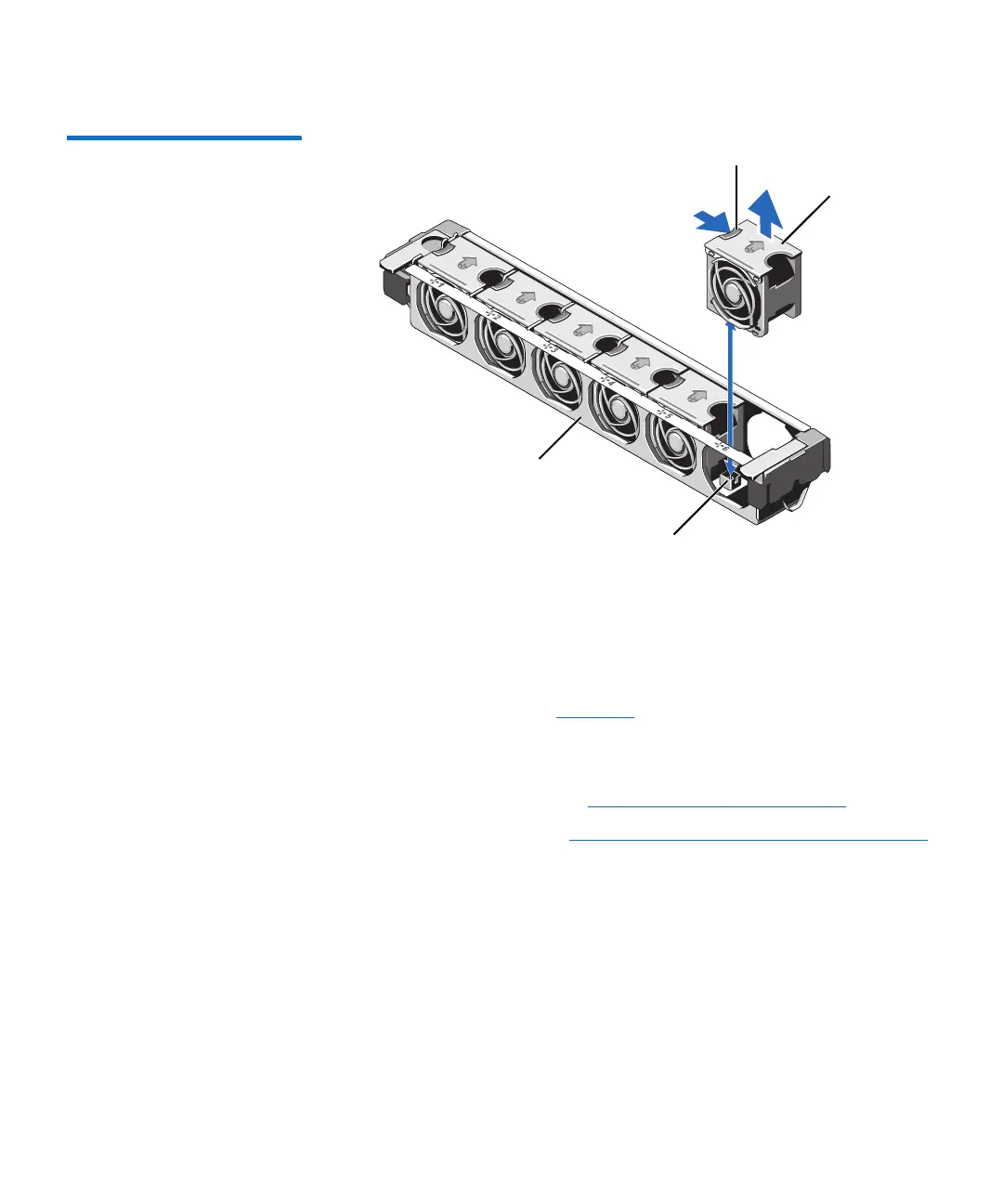

Figure 55 Removing and
Installing a Cooling Fan
Installing a Replacement Cooling Fan in the Node
To install the replacement cooling fan in the DXi6900 G1 Node:
1 Align the plug at the base of the cooling fan with the connector on
the system board (see
Figure 55).
2 Slide the cooling fan into the securing slots until the tabs lock into
place.
3 Close the Node cover (see Opening and Closing the Node).
4 Turn on the system (see Turning On and Shutting Down the System
on page 23).
5 In the remote management console, delete any administrative alerts
and close any service tickets.
Cooling fan assembly
Cooling fan connector
Fan release tab
Cooling fan
