Radwin 2000 - Figure 6-9 Channel Settings

To Next Page

To Previous Page

RADWIN2000UserManual Release2.8.30 6‐9

Installation

2.ChoosetherequiredChannelBandwidth.

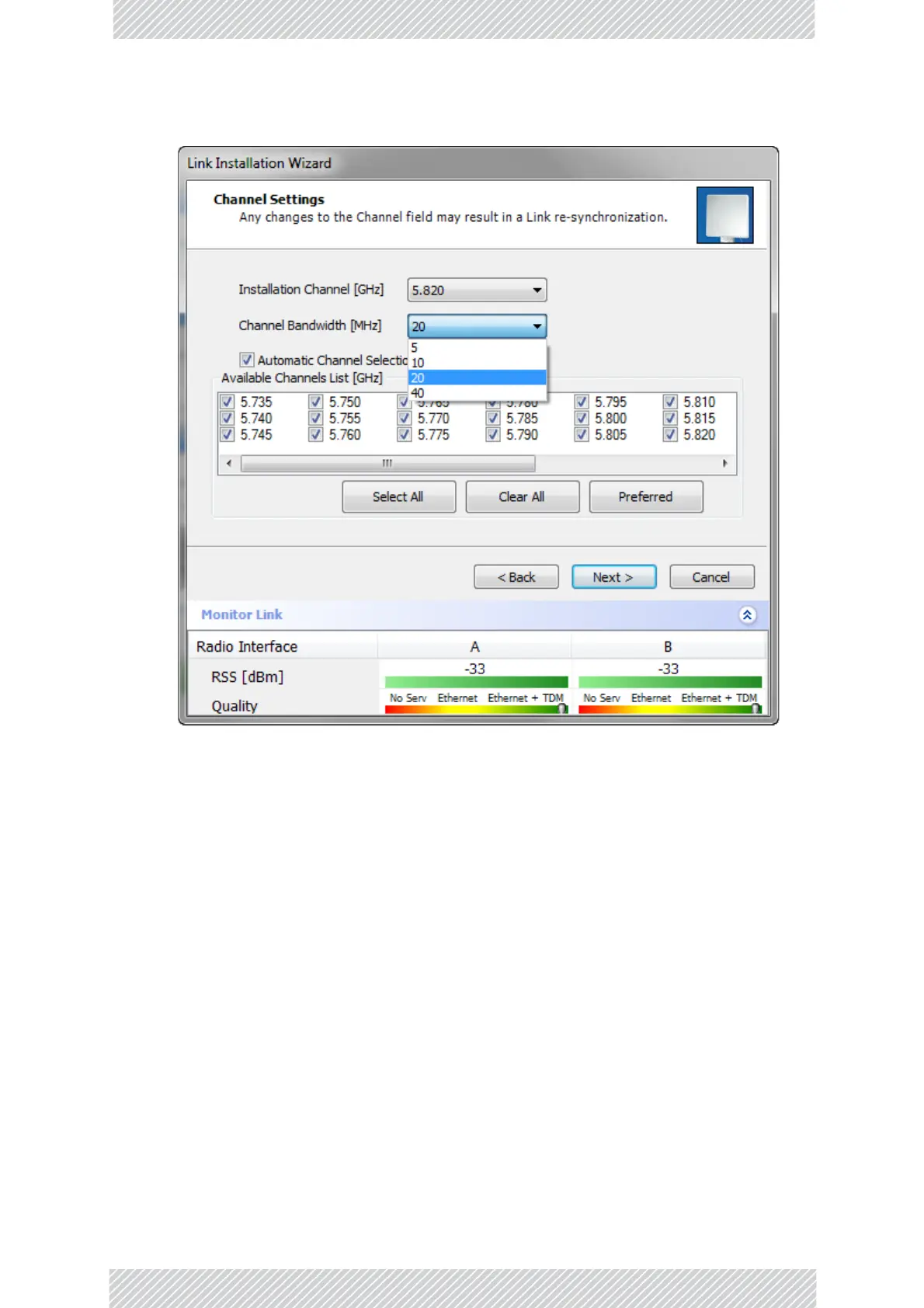

Figure6‐9:ChannelSettings‐ShowingavailableChannelBandwidths

3.ClickthecheckboxifAutomaticChannelSelectionisrequired.

4.TheAvailableChannelsListcontainsalloftheallowablechannelsforthelink.Check

thechannelsthatcanbeautomaticallyselected.

Selectinganewchannelcausesthesystemqualitytochange.TheQualitybarpro‐

videsanindicationofthelinkqualityfromNoserv(ice)(red)toEthernet+TDM

(green)asshowninthebottomofFigure6‐8above.

5.ClickNext.

Step4,TxPowerandAntennaSettings

TheTxPowerandAntennaParametersdialogisdisplayed.
