RADWIN2000UserManual Release2.8.30 14‐12

ConfiguringtheGSU

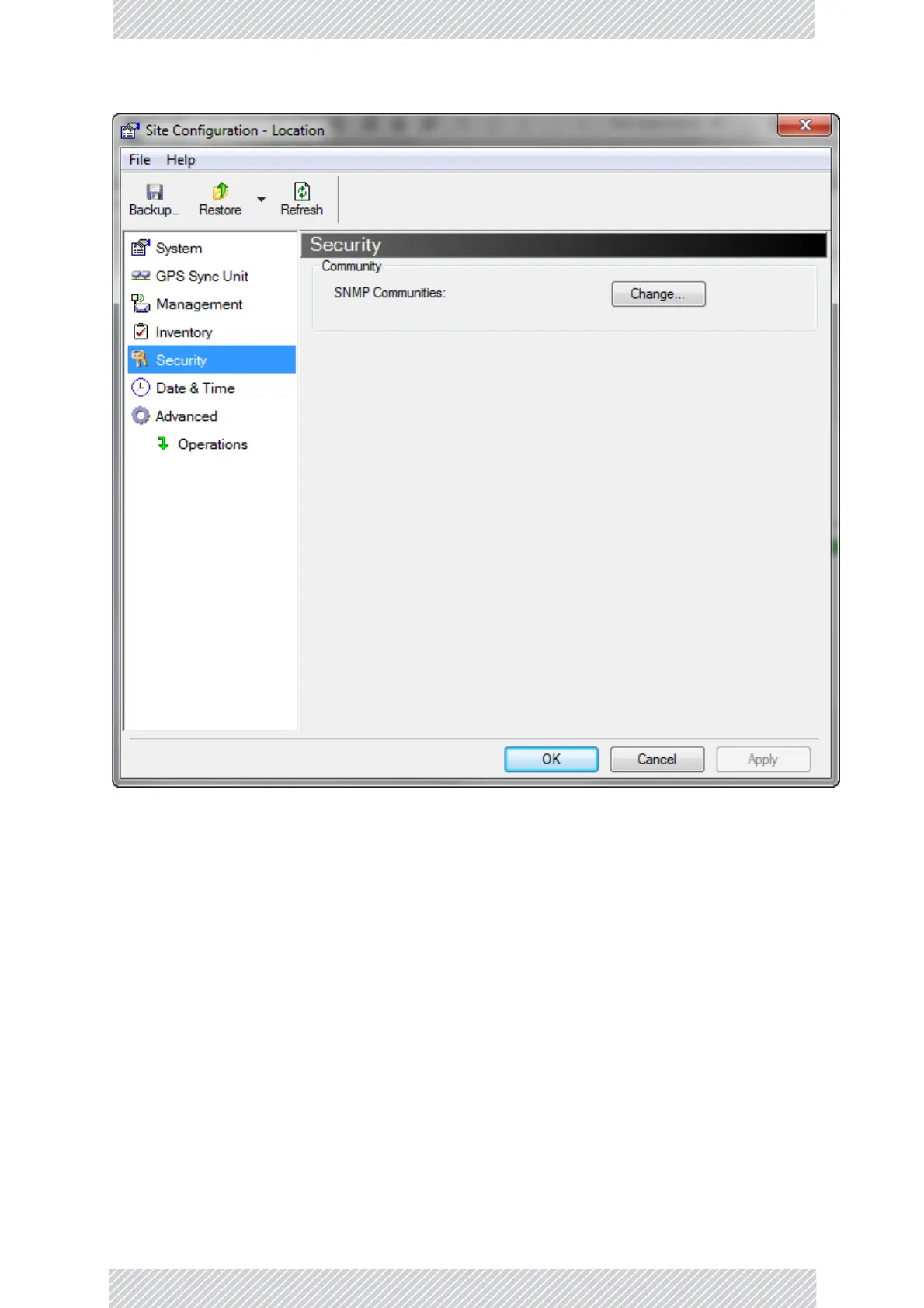

Figure14‐11:SiteConfiguration:Security

SiteConfiguration:DateandTime

ODURecentevents,alarmsandtrapsaretime‐stampedfromthetimemethodchosenhere

(NTP,managingcomputer,ODUdefault).
