RADWIN2000UserManual Release2.8.30 7‐1



Chapter7:

TheRADWINManager:Main

Window

TheMainWindowoftheRADWINManager

EnsurethattheRADWINManagerisrunning.

ThemainwindowshouldlooksimilartothatinFigure7‐1:

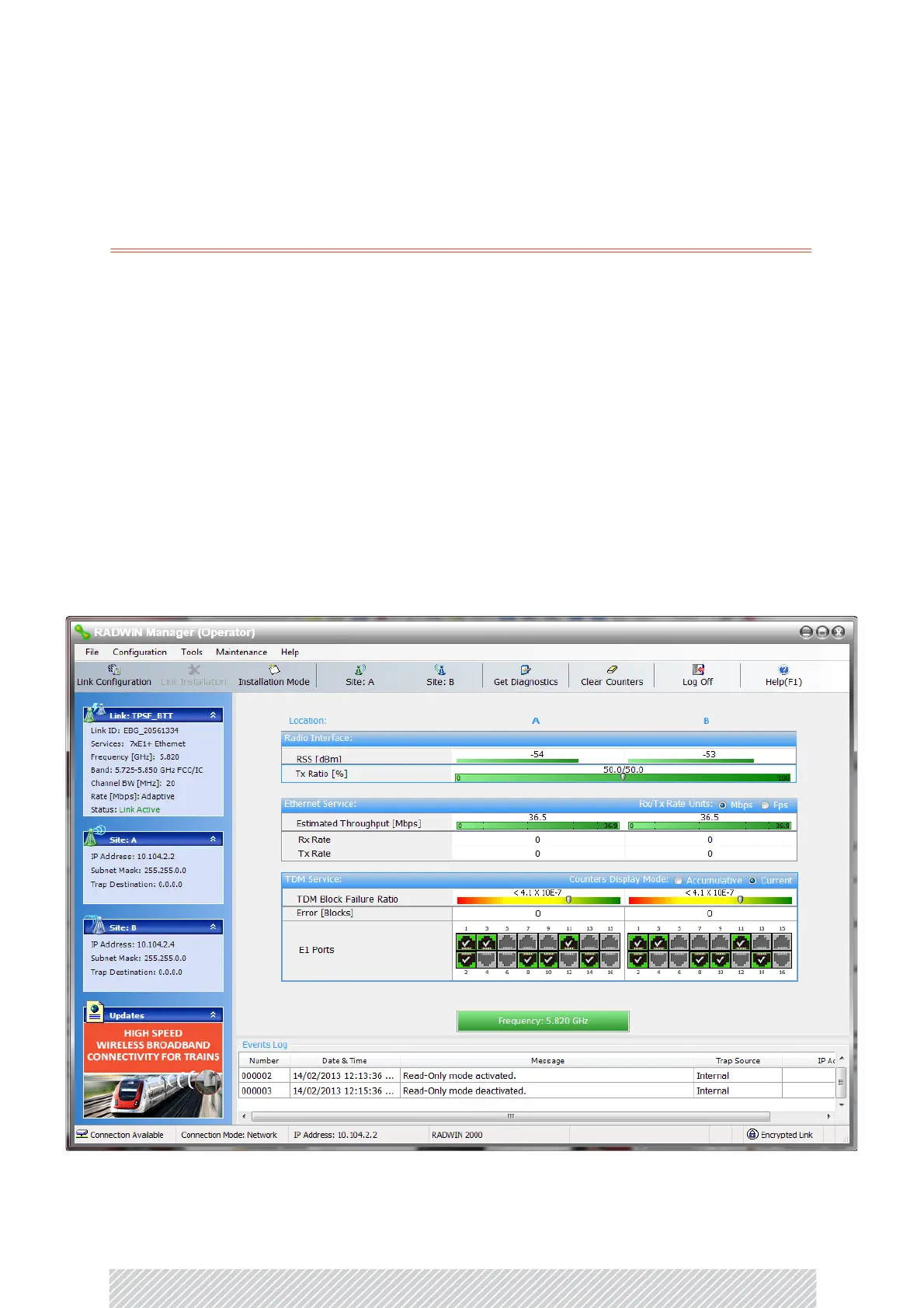

Figure7‐1:Mainwindow,WirelessLinkisActive
