RADWIN2000UserManual Release2.8.30 21‐3

SettingupQoS

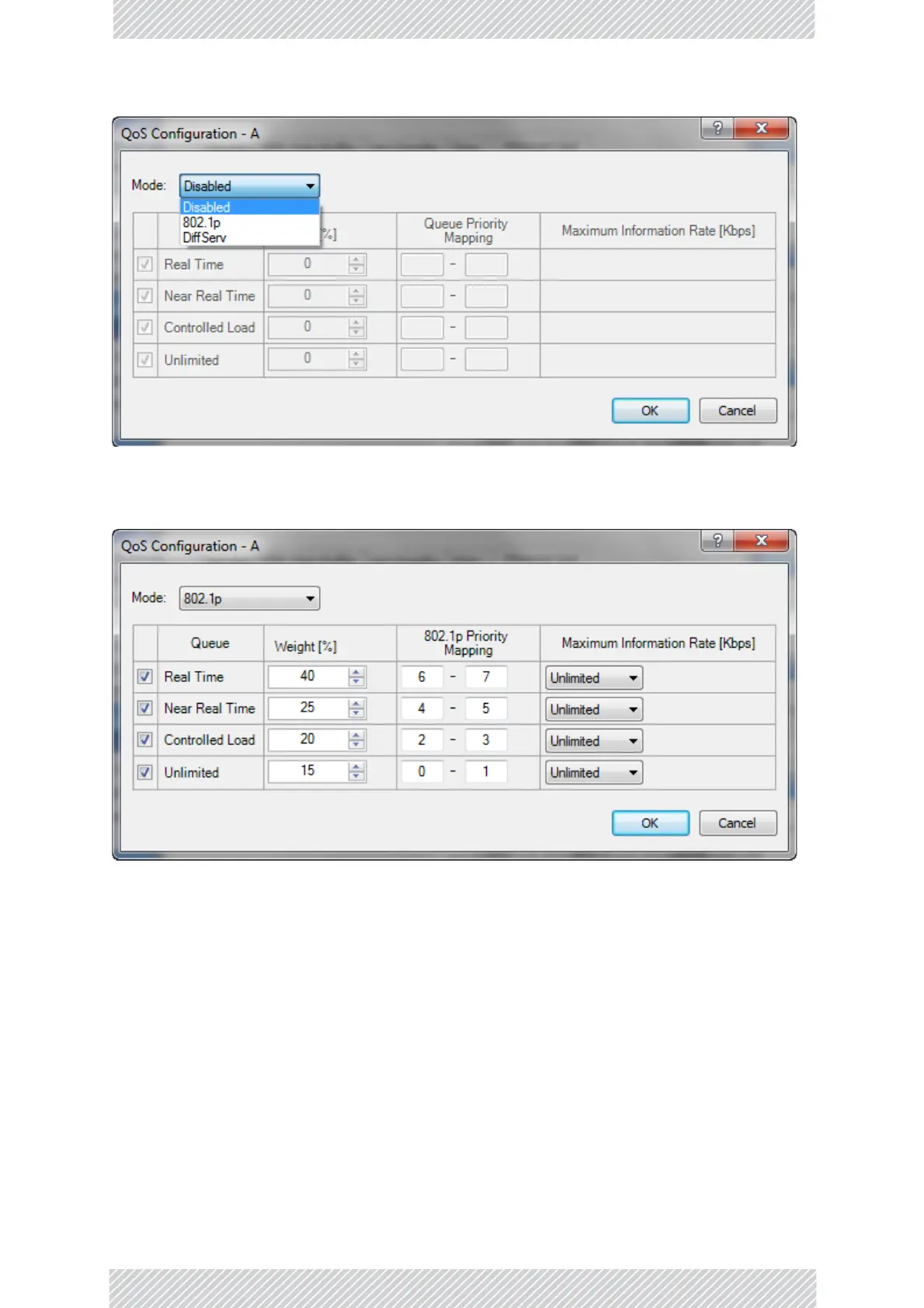

Figure21‐2:EthernetQoSConfiguration‐Modeselection

3.Choosetherequiredmode‐802.1p(VLAN)orDiffserv.
