RADWIN2000UserManual Release2.8.30 9‐4

ViewingAirInterfaceDetails

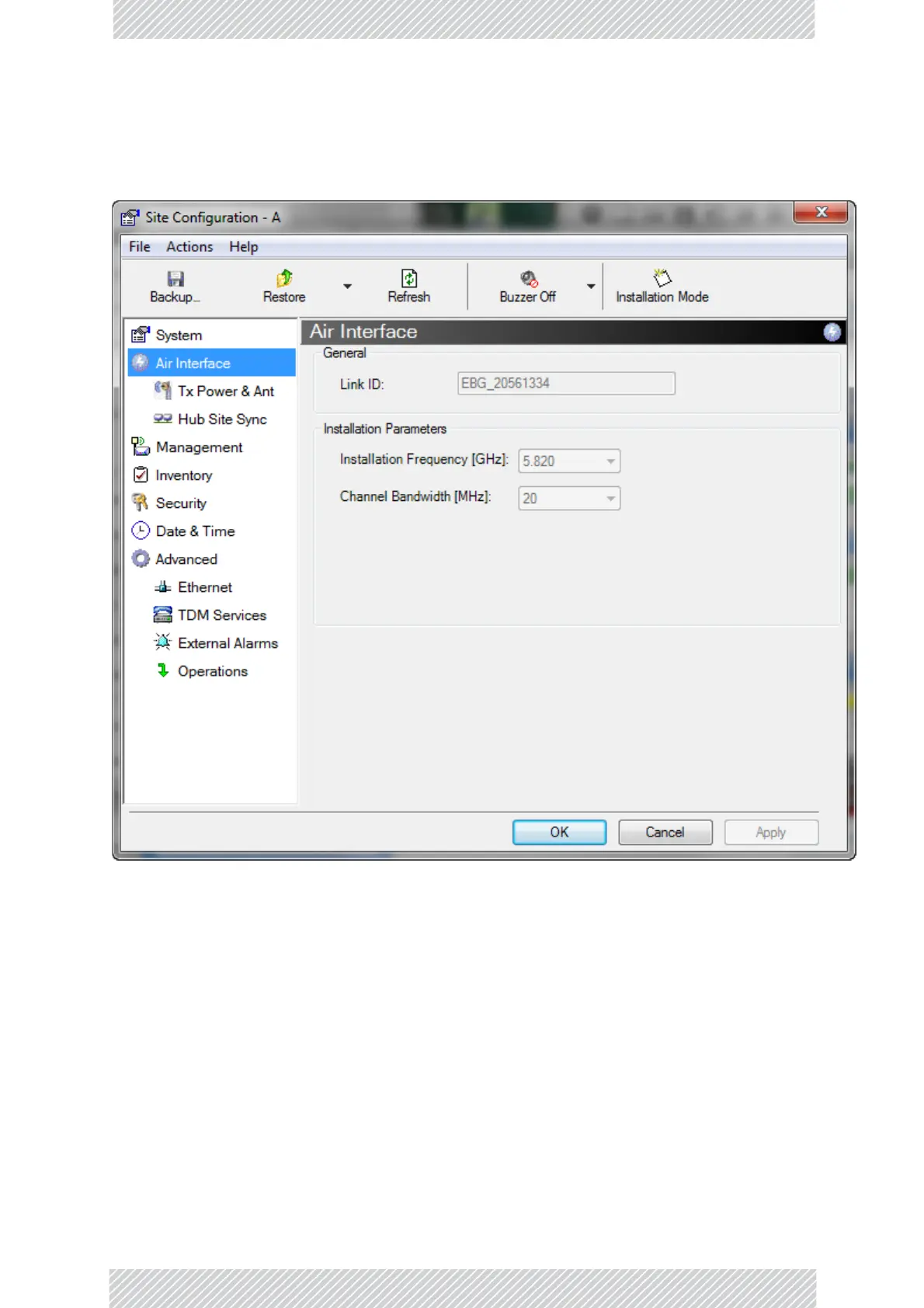

ClicktheAirInterfaceiteminthelefthandlist.Awindowsimilartothefollowingappears:

ChangingtheTransmitPower

EachsitecanhaveadifferentTxPowerlevel.

 TochangetheTransmitPower:

1.Chooseasitetoconfigure.

TheConfigurationdialogboxopens.

2.ChooseAirInterface(seeFigure9‐2).

3.ChoosetherequiredTransmit(Tx)PowerLevel.

4.ClickApplytosavethechanges.
