Radwin 2000 - Tip: How to Recover a Forgotten ODU IP Address; Figure 26-8 Existing Ip Address

To Next Page

To Previous Page

RADWIN2000UserManual Release2.8.30 26‐8

Tip:HowtoRecoveraForgottenODUIPAddress

Tip:HowtoRecoveraForgottenODUIP

Address

IfyouhaveanODUwithlostorforgottenIPaddress,usethe aboveproceduretologontoit

usingLocalConnection.TheIPaddresswillappearinthelefthandstatusarea:

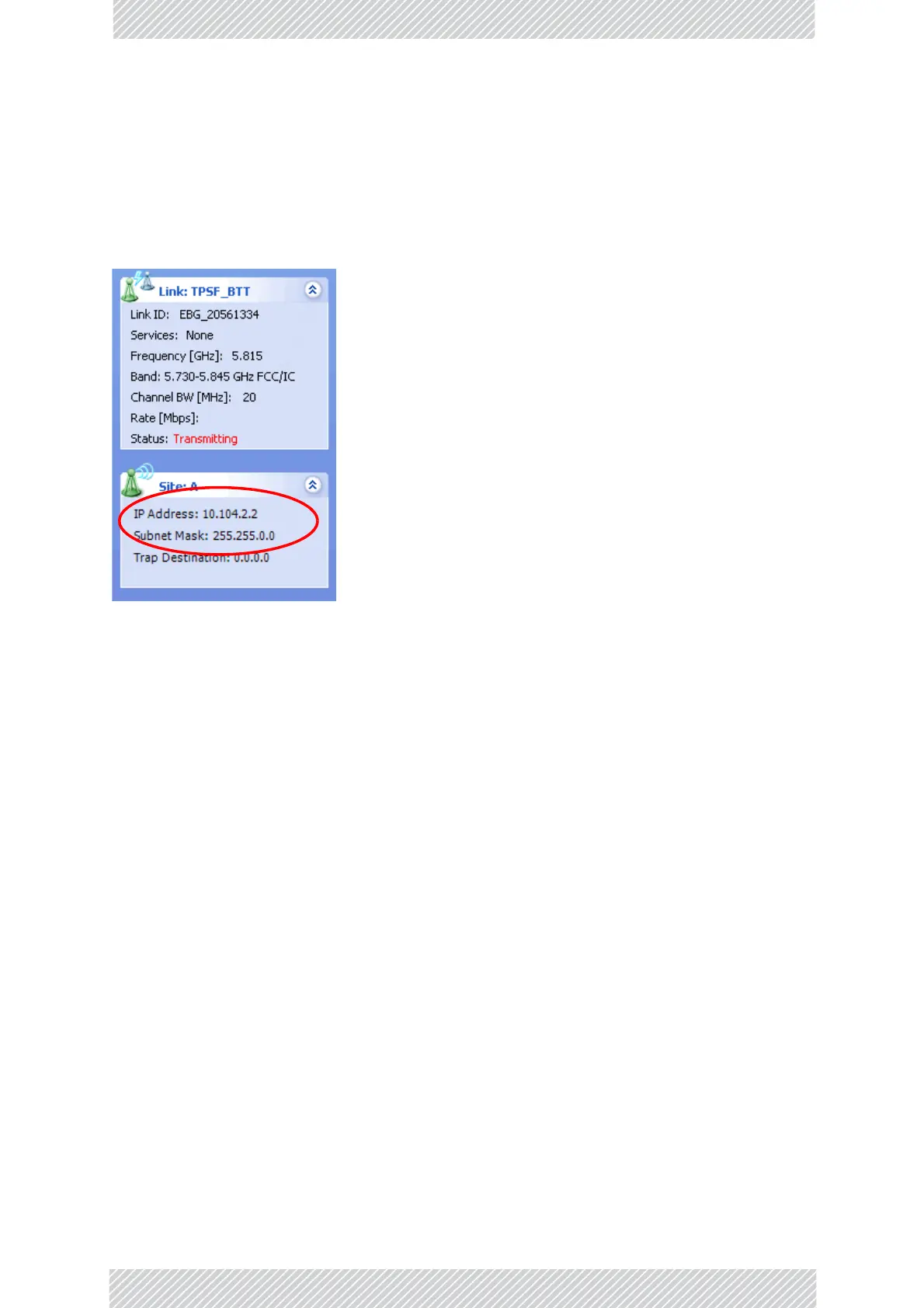

Figure26‐8:ExistingIPaddressdisplayedafterlog‐onwithLocalConnection
