Radwin 2000 - Figure 29-9 Web Interface

To Next Page

To Previous Page

RADWIN2000UserManual Release2.8.30 29‐10

UsingtheConfigurationWizard

5.Acceptthenextbrowser‐initiatedconfirmation:

TheWIdisplaysthefollowingadvisorymessage:

Thenextpage‐ChangeBandwidth,isdisplayed:

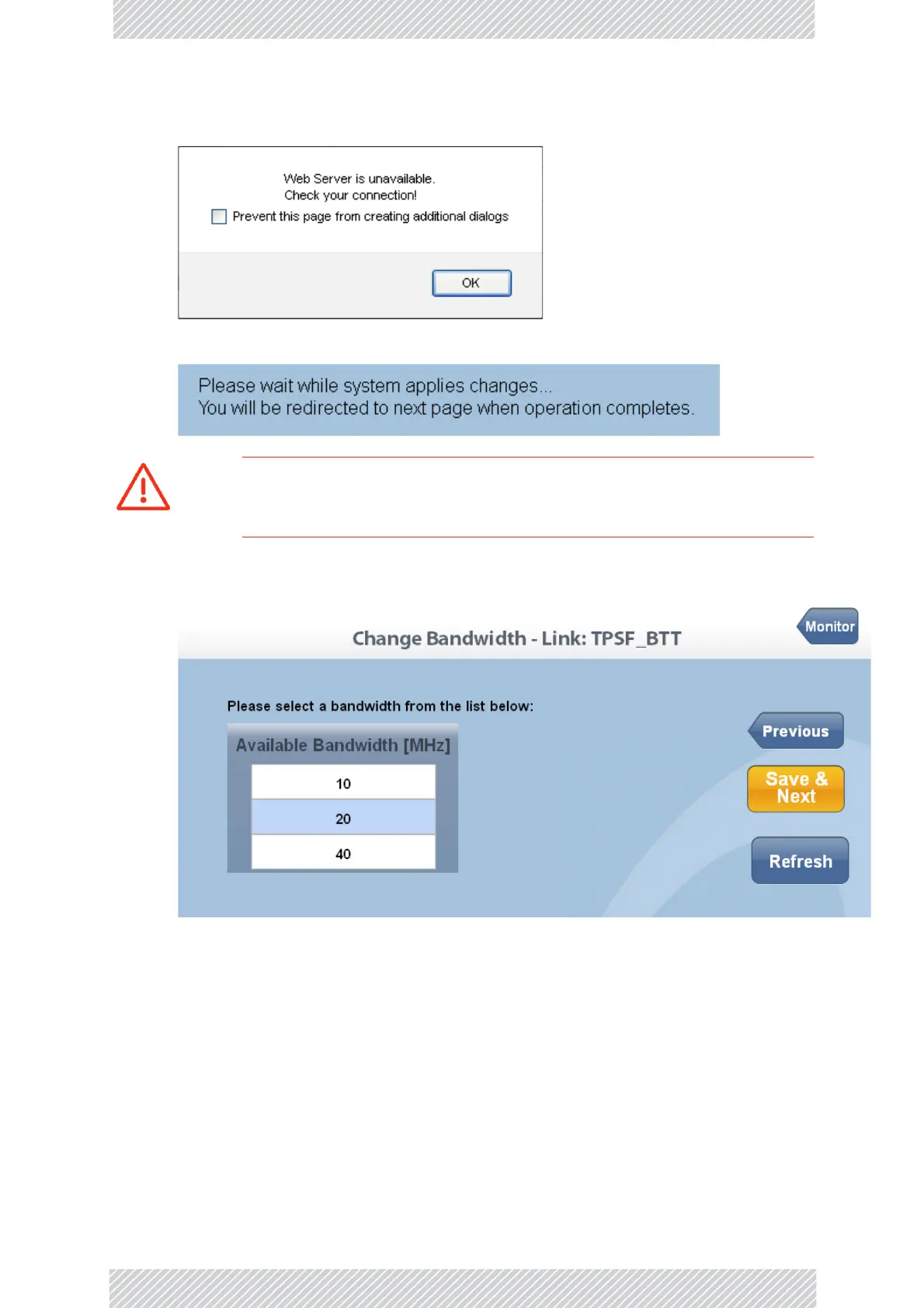

Figure29‐9:Webinterface‐ChannelBandwidthsettings

6.Forthisexample,leavetheBandwidthasis,andclickSave&Next.Hereistheresult:

Warning

ThisoperationleavesthelinkinInstallationmode,whereitremainsuntil

completionoftheWizard.ThelinkthenrevertstonormalActivemode.
