RADWIN2000UserManual Release2.8.30 10‐12

TheMonitorLog

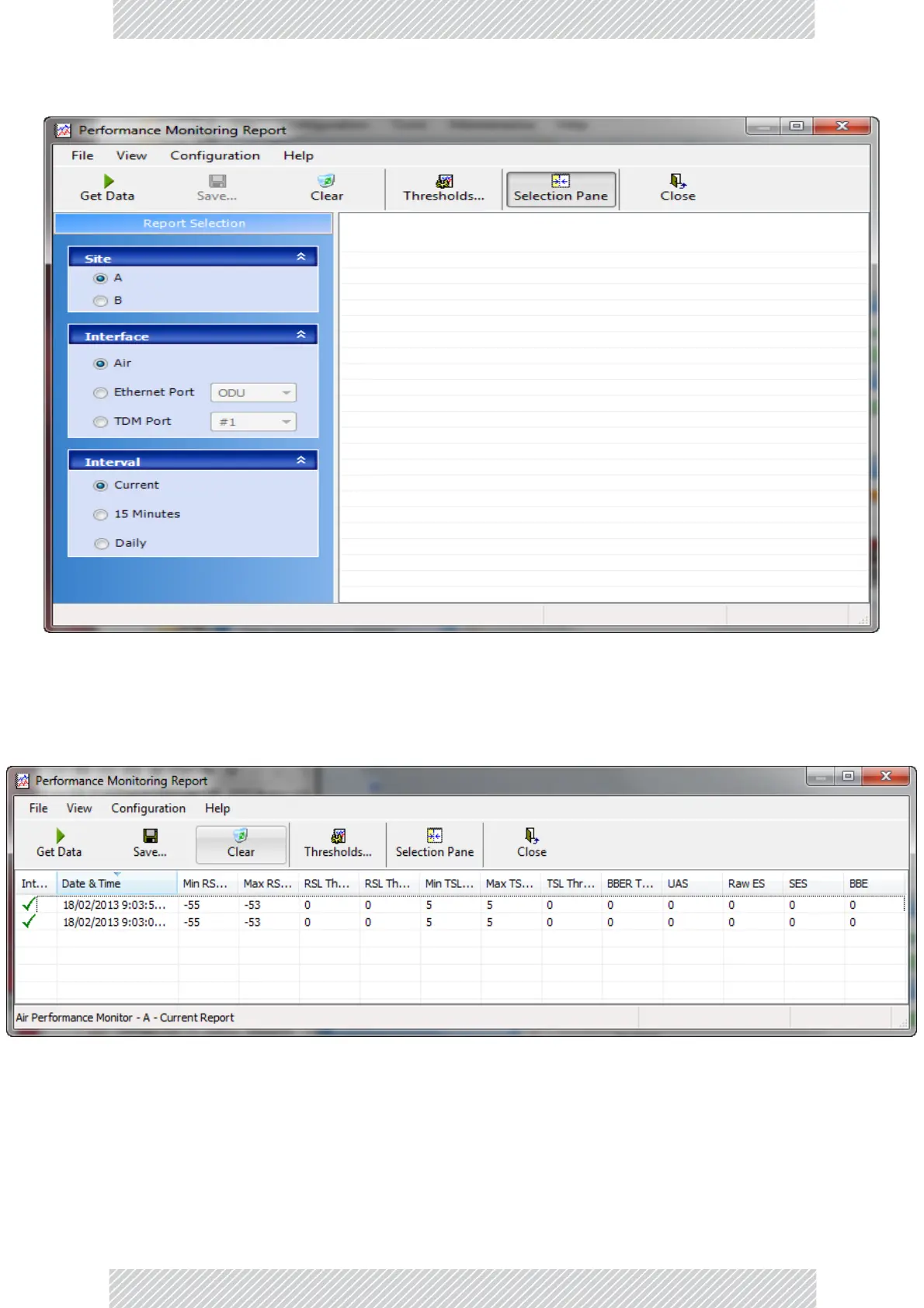

Figure10‐12:BasicPerformanceMonitoringReport

2.ChooseareporttypefromtheleftpanelandclicktheGetDatatoolbarbutton.For

example,ifyouchooseSiteA,AirandCurrent,youwillbeofferedareportlooking

likethis:

Figure10‐13:TypicalPerformanceMonitoringReportbasedon15minuteintervals

NoticetheMinRSLvalueof‐100onthefourthline.ItIndicatesthatduringtheinter‐

val12:30to12:45,therewasalinksync‐loss.Thenextfigureshowstheeff ectofa

resetbetween14:15and14:30.
