RADWIN2000UserManual Release2.8.30 9‐13

SecurityFeatures

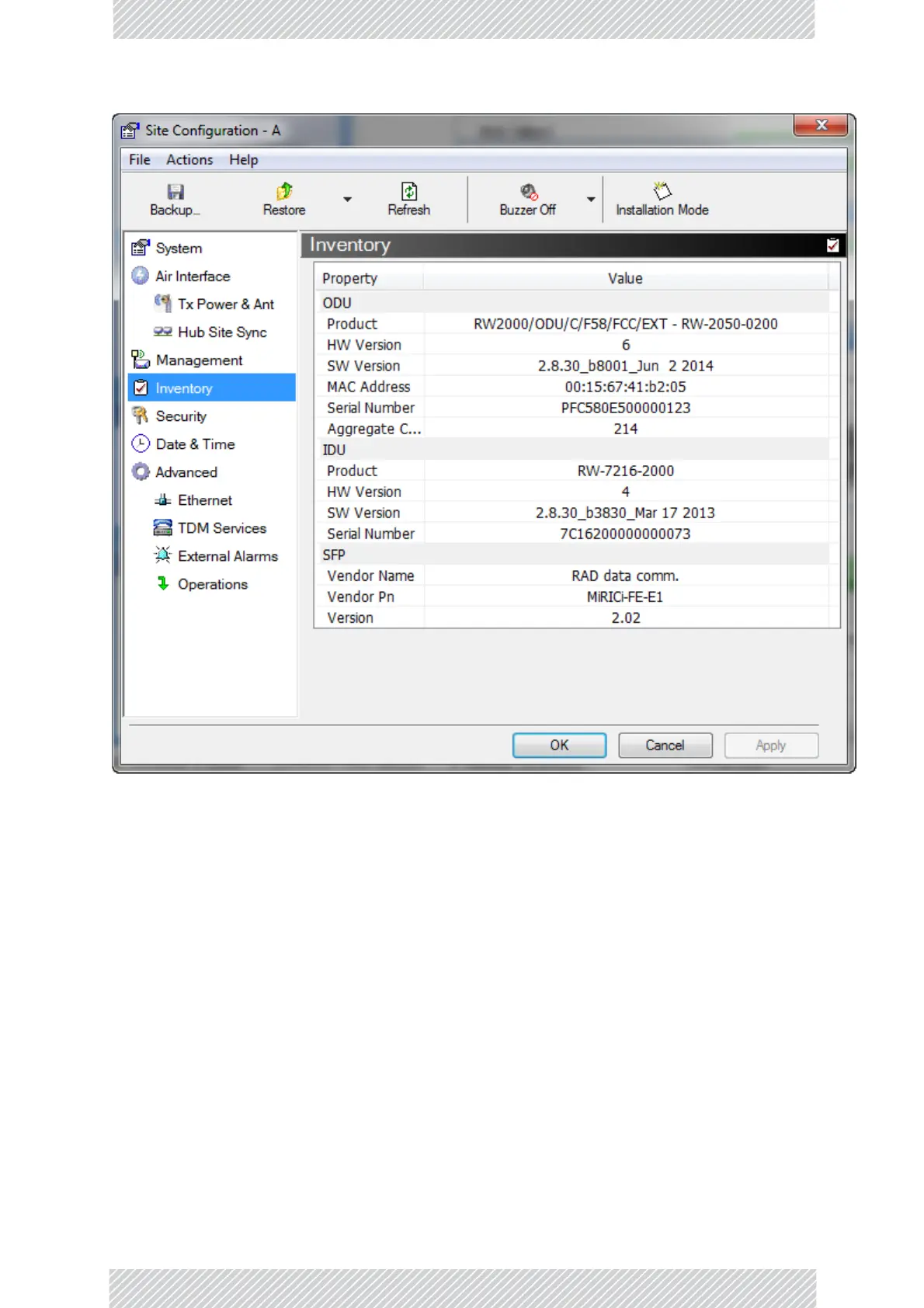

Figure9‐7:Inventorywindow

SecurityFeatures

TheSecuritydialogenablesyoutochangetheLinkPasswordandtheSNMPCommunity

stringsandusetheLinkLockfeature:
