Radwin 2000 - Figure 9-24 Site Configuration

To Next Page

To Previous Page

RADWIN2000UserManual Release2.8.30 9‐41

Resetting

 Toresetthelinkpreservingcurrentconfiguration:

1.FromMaintenanceonthemainwindow,resetthe remoteunit.

2.FromMaintenanceonthemainwindow,resetthe localunit.

 ToresettoFactoryDefaults

1.Chooseeitherofthesitestobereset.TheConfigurationdialogboxopens.

2.ChooseOperationsintheConfigurationdialogbox.

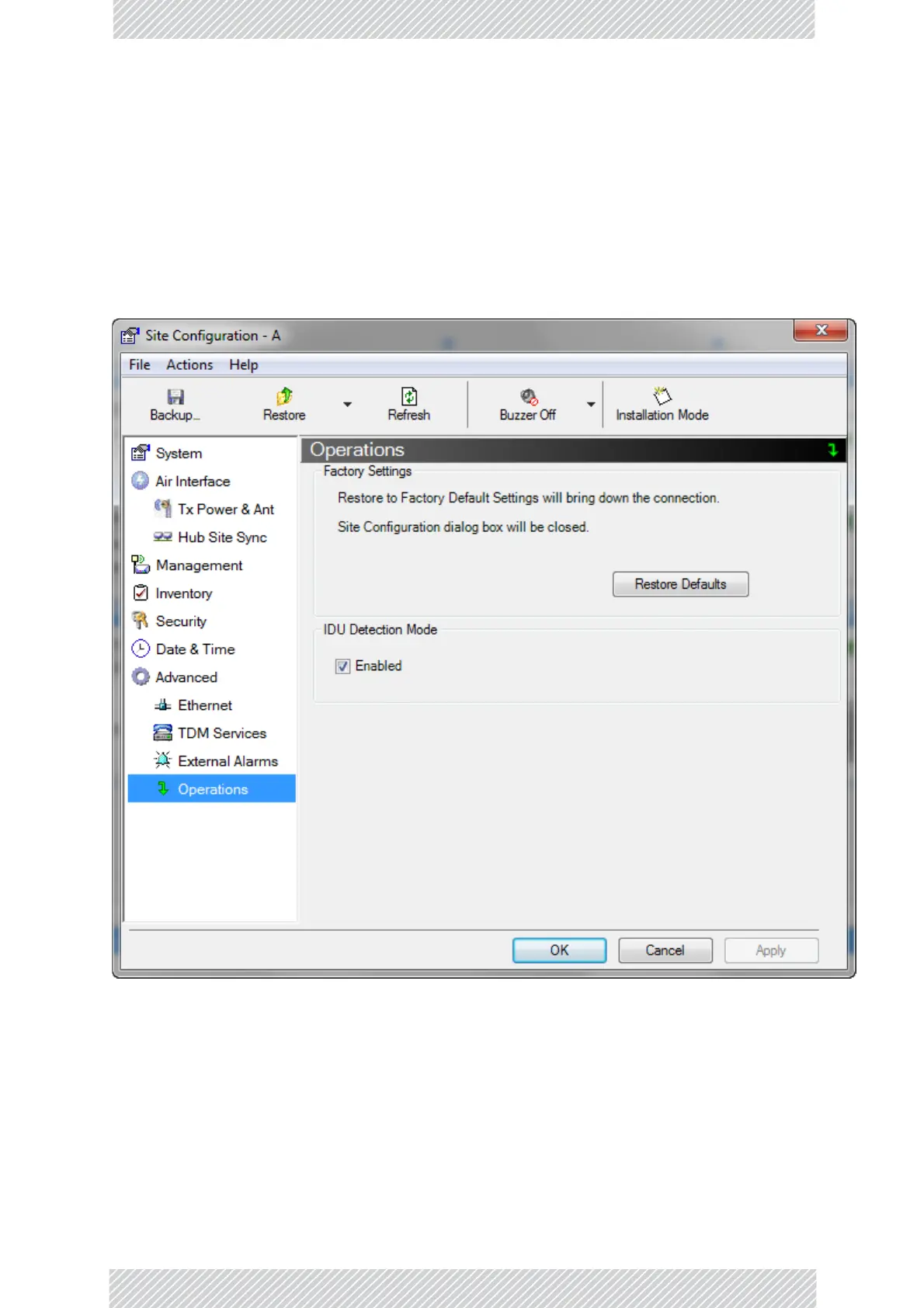

Figure9‐24:SiteConfiguration‐Resettofactorydefaults

3.ClicktheRestoreDefaultsbutton.

Amessageboxaskingifyouwanttorestorefactorydefaultsettingsappears.
