RADWIN2000UserManual Release2.8.30 10‐22

RevertingAlertMessages

 Toviewthelast256events:

1.ClickTools|RecentEvents...Awindowlikethefollowingisdisplayed:

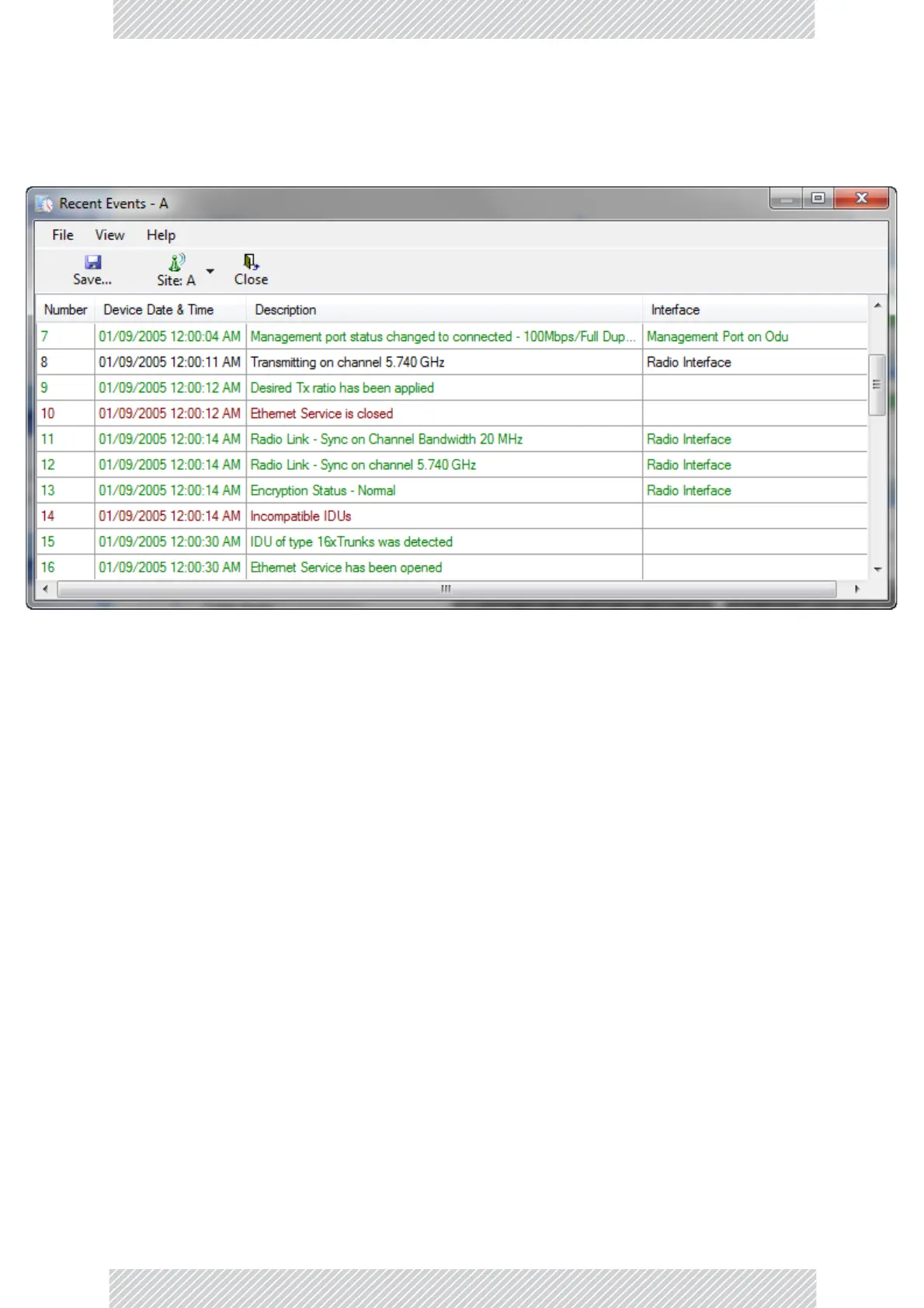

Figure10‐19:RecentEvents‐Uptolast256eventsatSiteA

2.UsetheSitebuttontochooseSiteB

3.UsetheSavebuttontostoretheeventsinatab‐delimitedlist.

RevertingAlertMessages

ManyalertmessagesintheRADWINManagerhaveanoptionoftheform“Donotshowthis

messageagain”.Thesealertmessagescanberevertedtotheirdefault state(shown)by

choosingtheAdvancedtabfromthePreferencesdialog:
