RADWIN2000UserManual Release2.8.30 6‐26

Installation

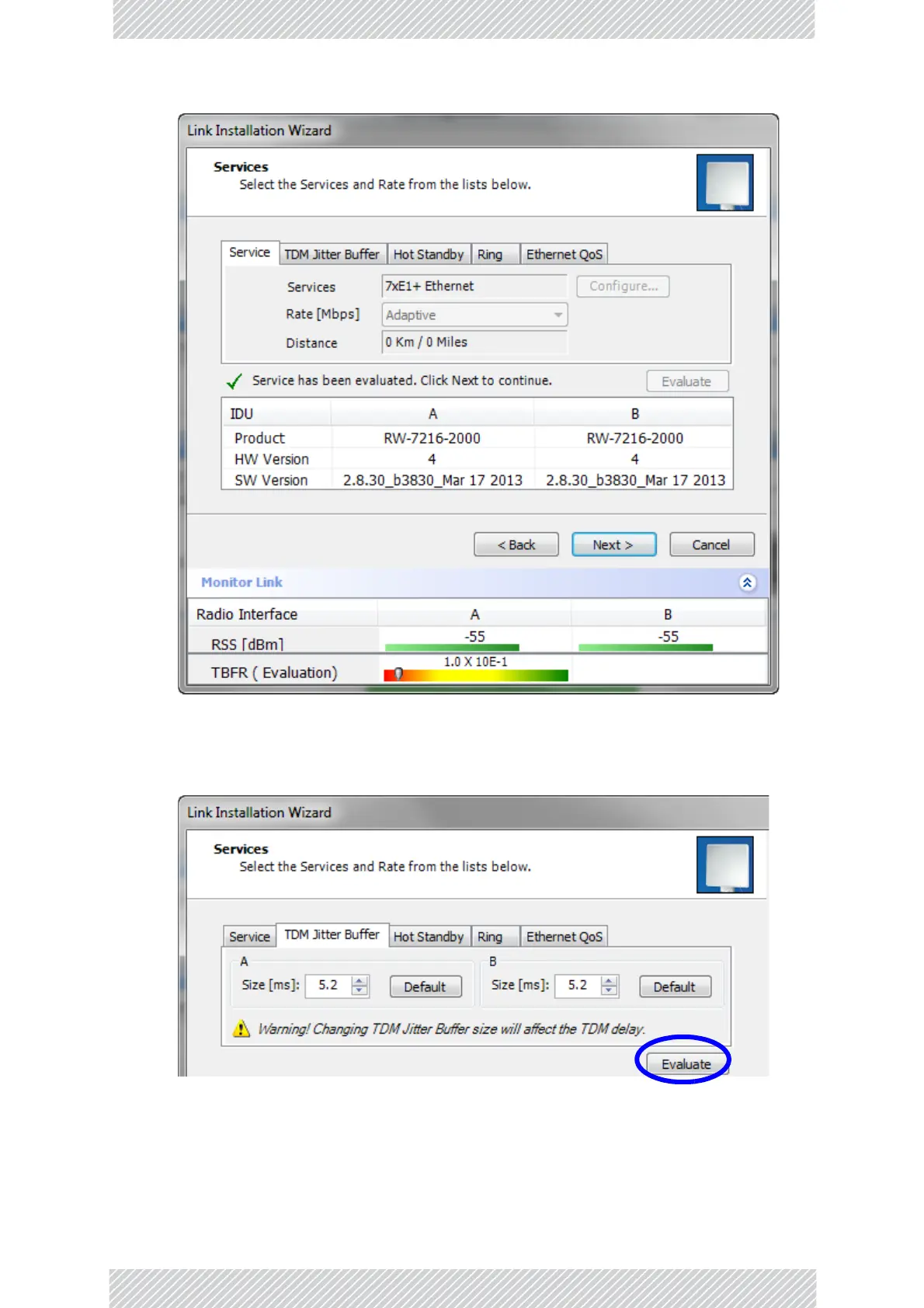

Figure6‐27:TDMJitterBufferConfiguration‐TBFRevaluationbar

2.Aftersettingthejitterbuffersize,ifgrayedout,theEvaluatebuttonisenabledwhile

bothBackandNextaredisabled asshowninthenextfigure:

Figure6‐28:ServicesandTDMdelayset‐linkreadyforevaluation

3.YoumaymakeanyfurtherchangestotheServiceConfigurationortheJitter

buffer.Whenyouaresatisfied,clicktheEvaluate.

Theoptimumtransmissionratefortheselectedservicesisevaluated.
