RADWIN2000UserManual Release2.8.30 4‐3
ODURadios

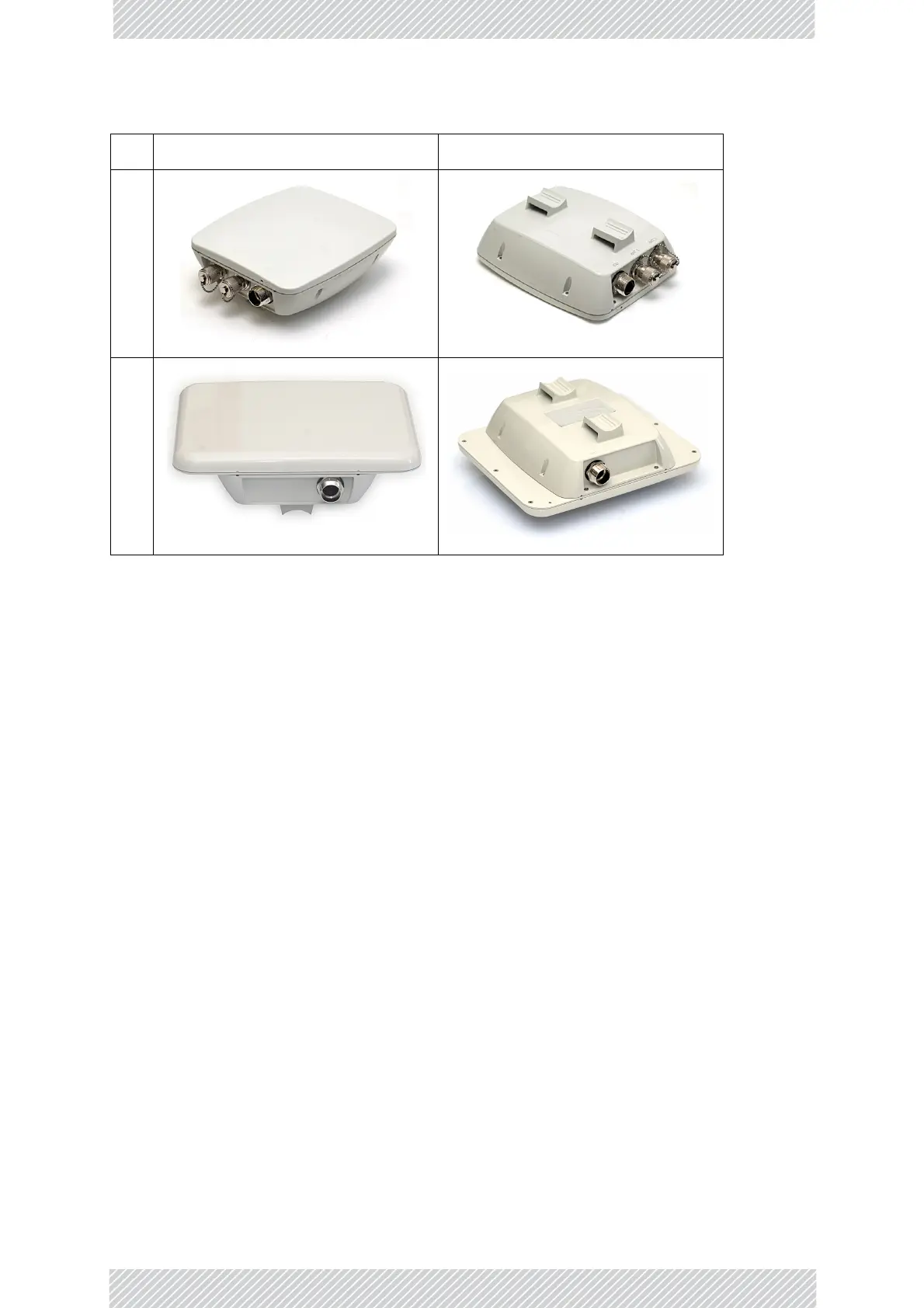

Figure4‐2:SmallformfactorODU:AandBseriesonly
• AnODUmountingkit
• ACDcontaining‐
• TheRADWINManager
• QuickStartGuide
• UserManual‐thedocumentyouarereading
• LinkBudgetCalculator
• Aself‐adhesivelabelshowingtheMACaddressandthealternativeCommunitystring.
Youshouldkeepthislabelinasafeplace
• Cableglands(tobeusedwiththeODU‐IDUcable)
• QuickStartGuideleaflet
FurthertoFigure4‐2abov e:
•IntegratedAntennaODU
ThisODUhasanintegrated370mm(1.2ft)flatpanelantenna.TheODUcontainsboth
theradioandtheantennaasasingleunithousedinaweatherproof(IP67)case.
•ConnectorizedODU
ThisODUhas2xN‐typeconnectorsforconnectinganexternalantenna
•Embedded(Connectorized)ODU
TheEmbeddedODUhastwoN‐typeconnectorsforanexternalantennaandabuilt‐in
lowgainantenna.
•ThesmallformfactorODUpackage
Italsocontainsaspecialmountingkitadapterandtwometalties.
Front Rear
ConnectorizedIntegratedAntenna
