RADWIN2000UserManual Release2.8.30 10‐6

LocalLineLoopback

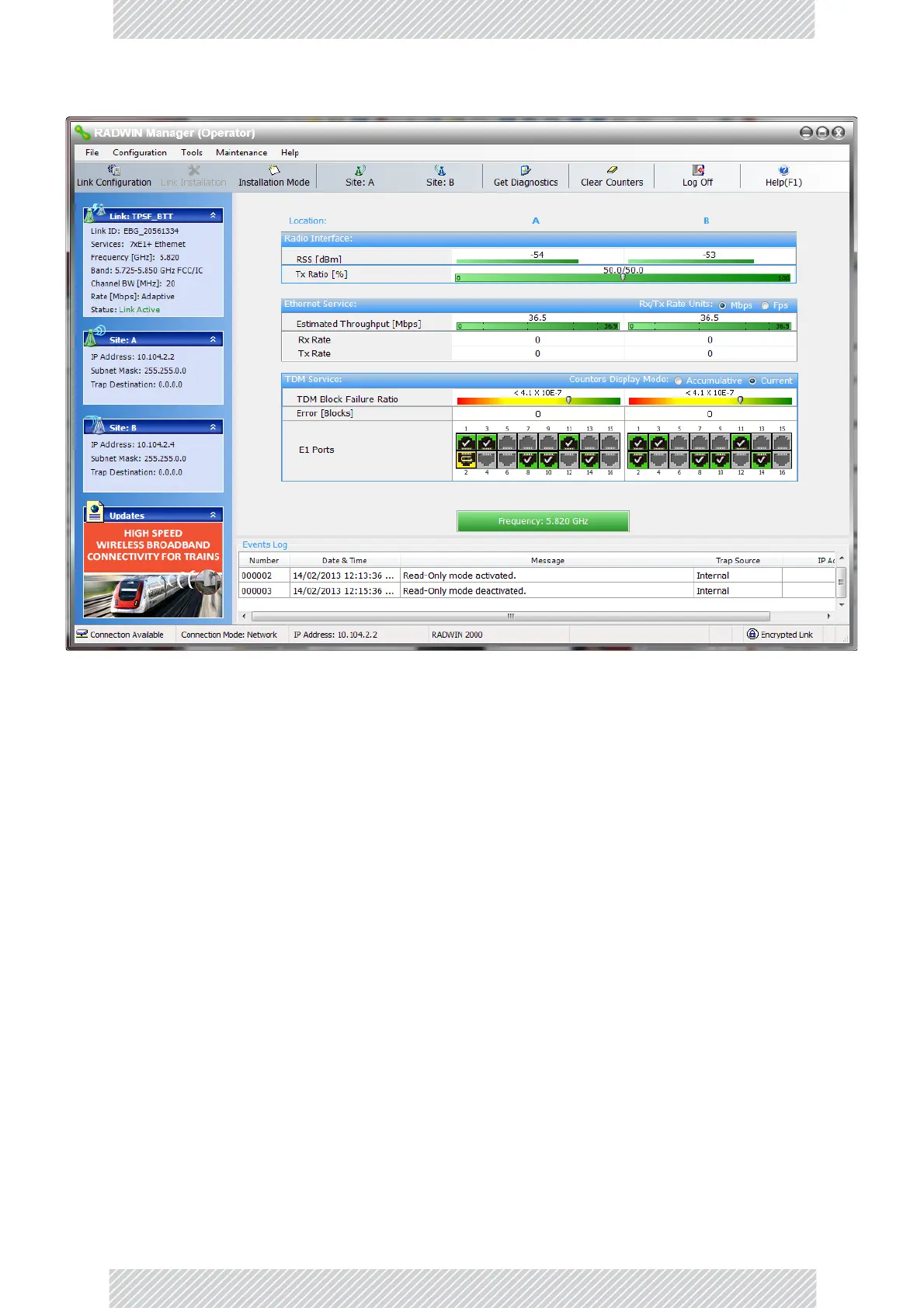

Figure10‐6:SiteAport2settoloopback

 Todeactivatealoopback:

•ReturntothesituationofFigure10‐4andclickNone.

Whenaloopbackisdeactivated,thecorrespondingiconinFigure10‐6

revertstoitspreviousstate(liketherightsideofthefigure).

LocalLineLoopback

ALocallineloopbackcanbesettotestthelocalE1/T1portanditsconnectiontolocalside

userequipment.Inthismode,datacomingfromthelocaluserequipmentisloopedbackto

it.Thisloopbackisinitiatedfromamanagingcomputerconnectedtothelocalunit.
