RADWIN2000UserManual Release2.8.30 10‐11
TheMonitorLog

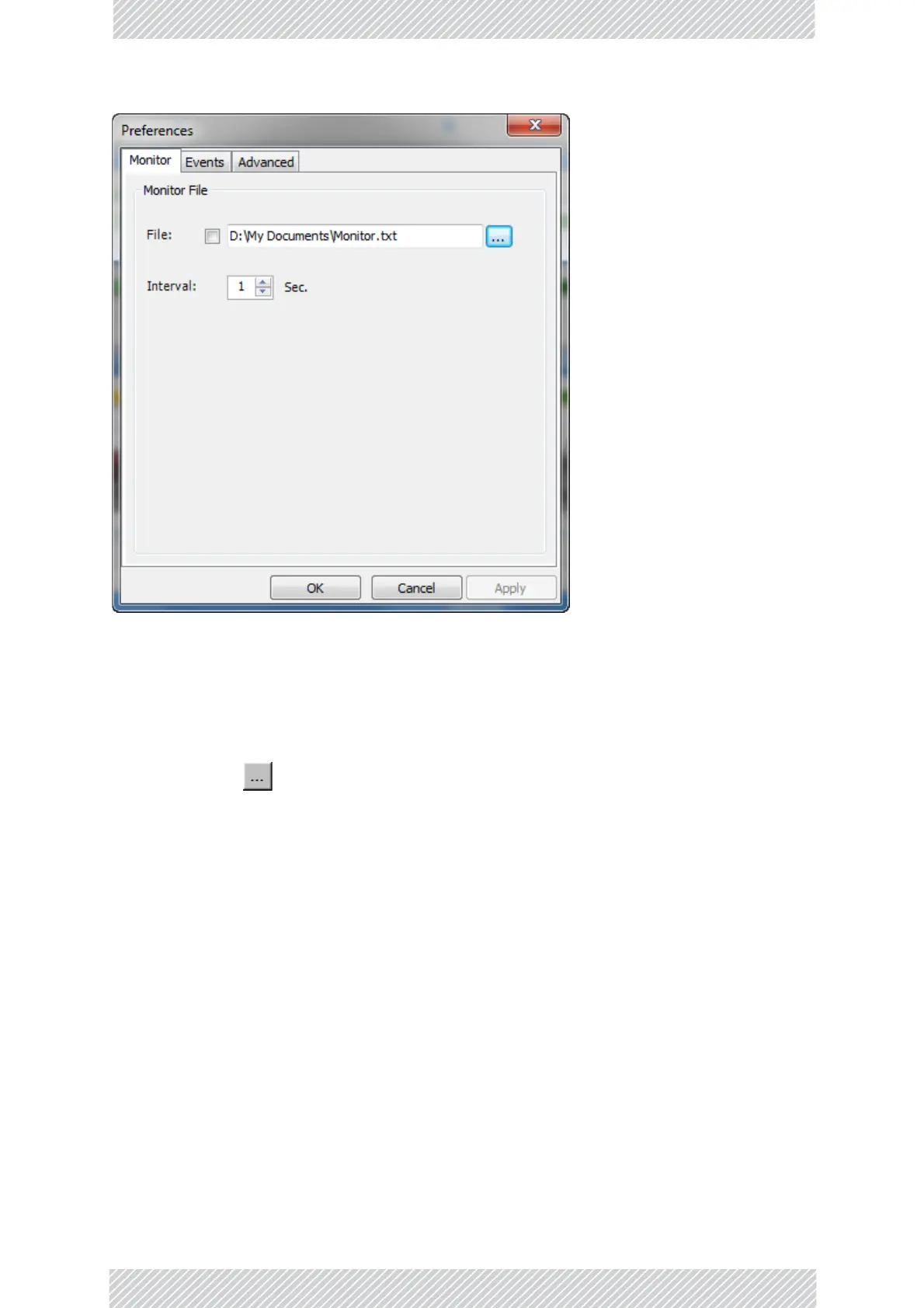

Figure10‐11:Preferencesdialogbox
2.ClicktheMonitorTab.
3.Selectthefiletosave.
4.Clickthecheckboxtoopenthefileforsaving.
5.Clickthe buttonandintheSelectFiledialogboxindicateinwhichfolderand
underwhatnamethemonitorlogfileistobe saved.
6.Setthetimeintervalforaddingdatatothefile.
7.ClickOKtosavethefile.
ViewingPerformanceReports
ThePerformanceMonitorReportdisplaysperformanceviewsofeachoftheinterfaces.
 Toobtainperformancemonitoringreports:
1.Fromthemainmenu,chooseTools|PerformanceMonitoringReport...
Youarepresentedwiththefollowingwindow:
