Radwin 2000 - Figure 24-3 Change Toi; Figure 24-4 Service Mode; Figure 24-5 Resumption of

To Next Page

To Previous Page

RADWIN2000UserManual Release2.8.30 24‐3

UsingQuickInstall

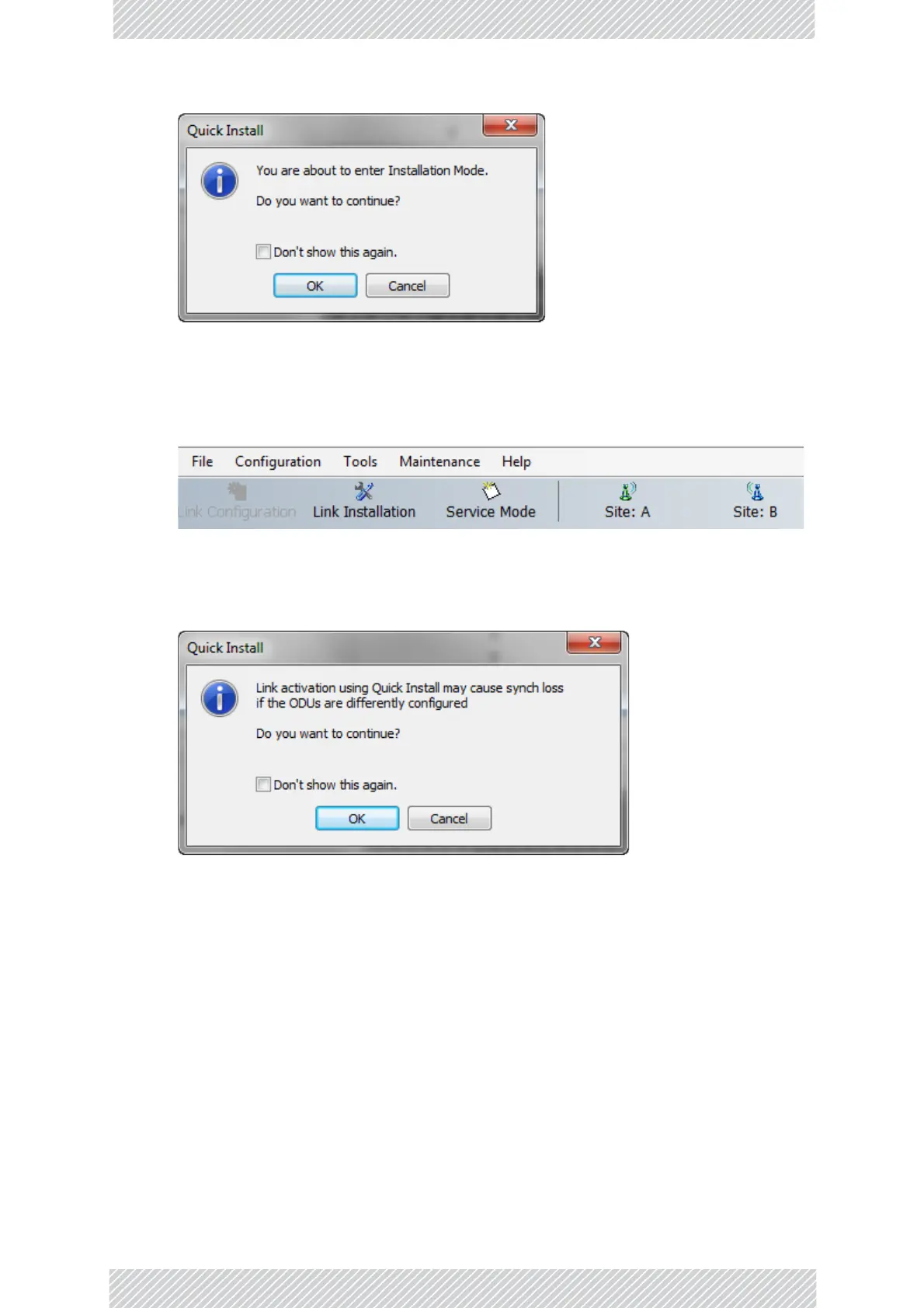

Figure24‐3:ChangetoInstallationModecautionarymessage

2.ClickYestocontinue.ThelinkgoesintoInstallationmode.Themainwindowlooks

thesameasifyouhadenteredInstallationmodeintheusualwaythroughoneofthe

Sitewindowswiththeexceptionofthetoolbar:

Figure24‐4:ServiceModebuttontoresumelinkservicetraffic

3.Whenyouarereadytoresumenormalservicetraffic,clicktheServiceModebutton.

Thefollowingcautionarymessageisdisplayed:

Figure24‐5:Resumptionofservicescautionarymessage
