RADWIN2000UserManual Release2.8.30 16‐7

SpecialCase:1+1EthernetRedundancy

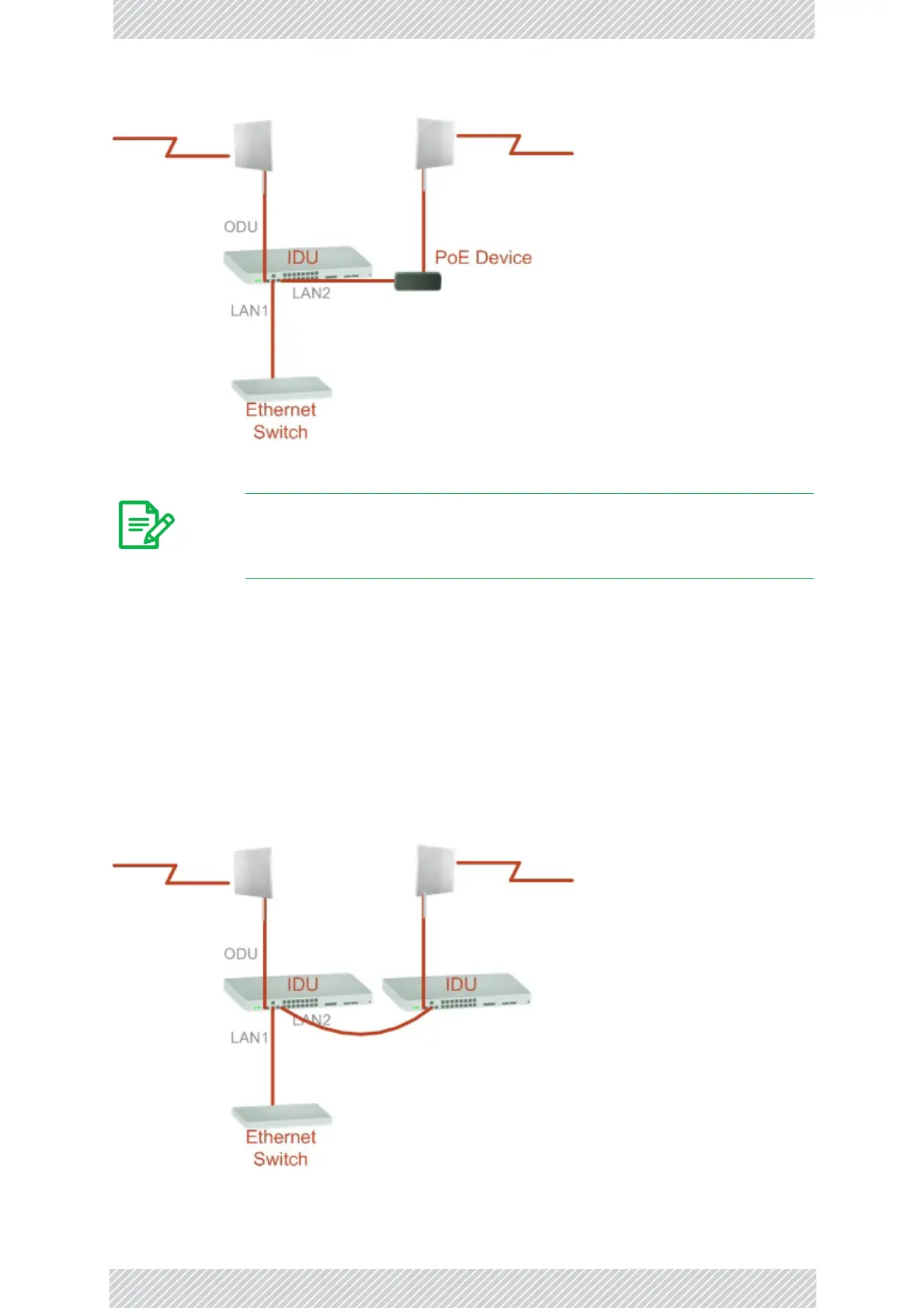

Figure16‐2:NodewithIDUandPoEdevice

TheswitchingfunctioniscarriedoutbytheIDU‐CsandIDU‐Es,bothofwhichprovideLayer2

support(seeChapter17).

SpecialCase:1+1EthernetRedundancy

Thesamedevicemaybeusedtoprovideeconomic1+1redundancyforasinglelink.

A1+1Ethernetisaringwithtwonodes.OneofthelinksisRPL.

Theequipmentina1+1Ethernetinstallationisasfollows:

Figure16‐3:1+1Ethernet

Note

ConnecttheswitchatthesiteonlytooneIDU.
