Radwin 2000 - Resetting; Figure 9-23 External Alarms

To Next Page

To Previous Page

RADWIN2000UserManual Release2.8.30 9‐40

Resetting

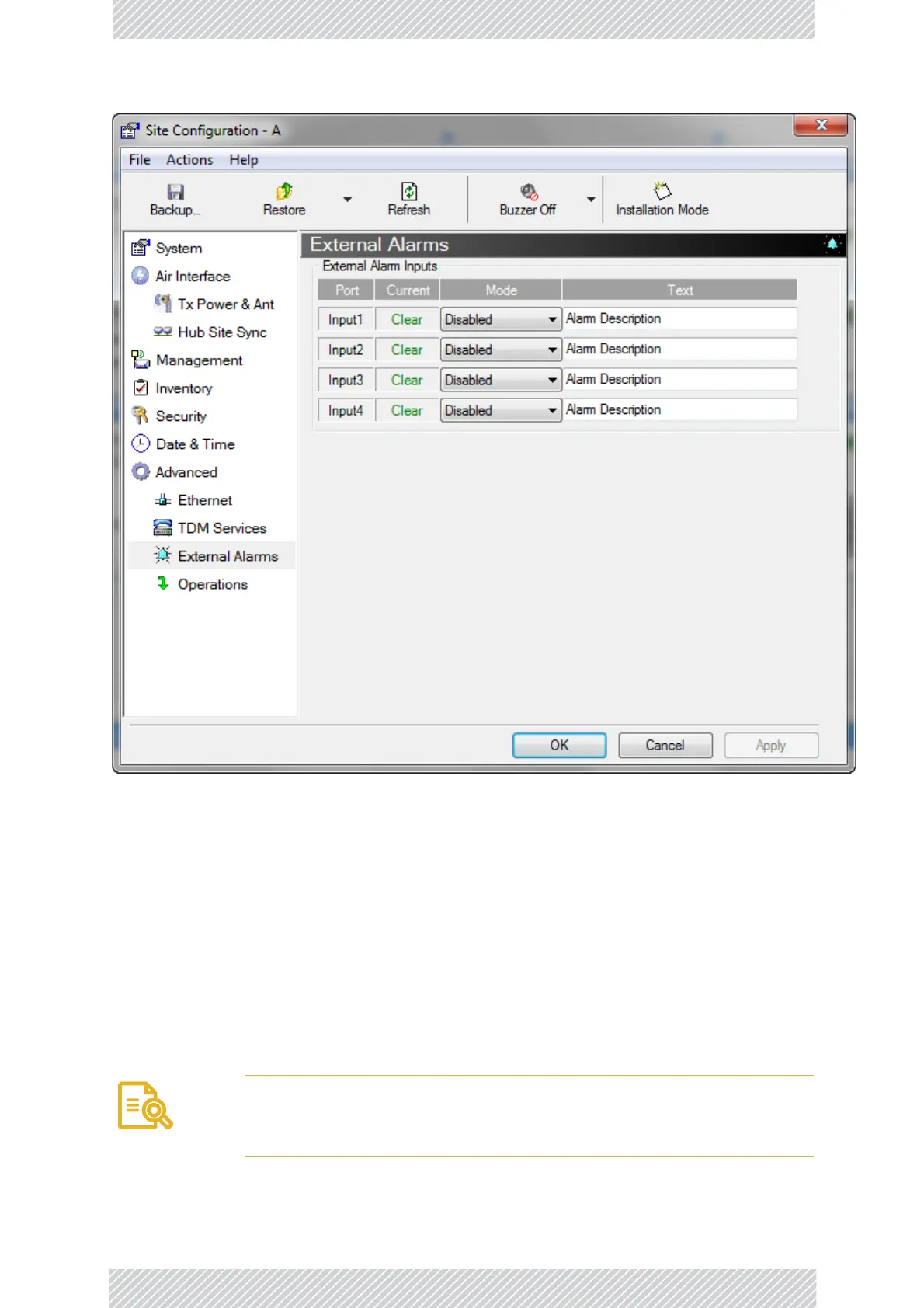

Figure9‐23:ExternalAlarmsConfiguration

2.ChooseanalarmandsetitsmodetoEnabledorDisabled

3.Enteradescriptionofthealarmsinthetextfield.

4.ClickApplytosave.

5.ClickOKtoexitfromthedialog.

Resetting

Youmayresetthelink,preservingthecurrentconfiguration,orresettofactorydefaults.

Caution

Resettingthelinkcausesser vicedisconnection.

Tomaintaintheconnectionbetweenthemanagingcomputerandthe

link,firstresetSiteB.
