RADWIN2000UserManual Release2.8.30 4‐10
Accessories

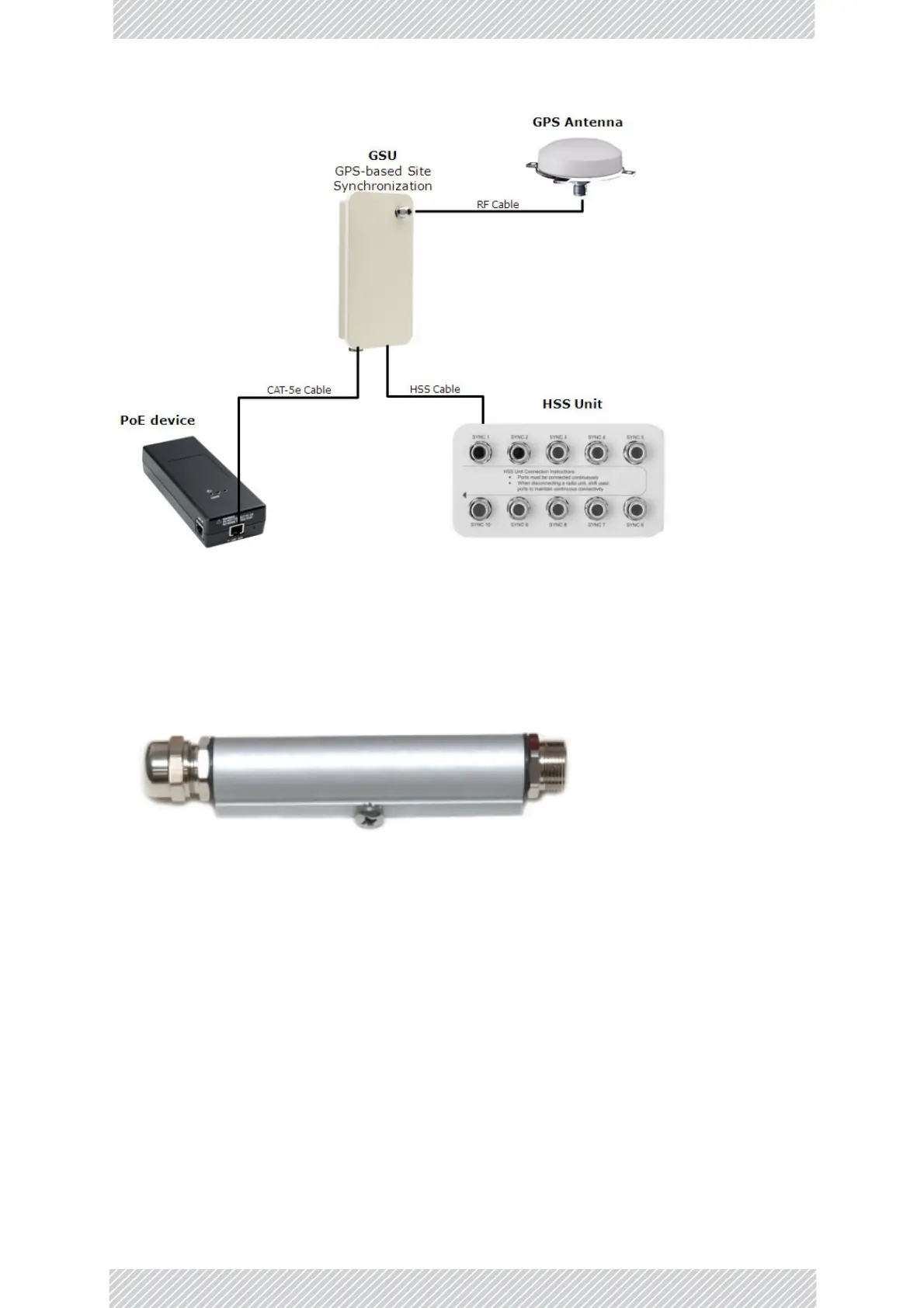

Figure4‐16:GeneralGSUconfiguration
LightningProtectorUnit(LPU)
Theuseoflightningprotectionisdependentonregulatoryandenduserrequirements.The
RADWIN2000ODUisdesignedwithsurgelimitingcircuitstominimizetheriskofdamagedue
tolightningstrike s.ItisdesignedforusewithRADWINproducts.
Figure4‐17:RADWINLightningProtector
Thelightningprotectorincorporateshigh‐powergasdischargetubeandcurrenttransistor
protectioninasingleprotectorunit.TechnicalspecificationsareshowninAppendixA.
EthernetcableRepeater
TheRADWINEthernetrepeaterenablesyoutoextendthePoEtoODUcablebeyondthe
100mlimit(butnomorethan200m).Theunitlooksphysicallylikethelightningprotection
deviceinFigure4‐17.Itsuseisverysimpleasshowninthefollowingschematic:
