Radwin 2000 - Figure 6-13 Antenna Parameters; Figure 6-14 T Xpower Limits

RADWIN2000UserManual Release2.8.30 6‐13
Installation

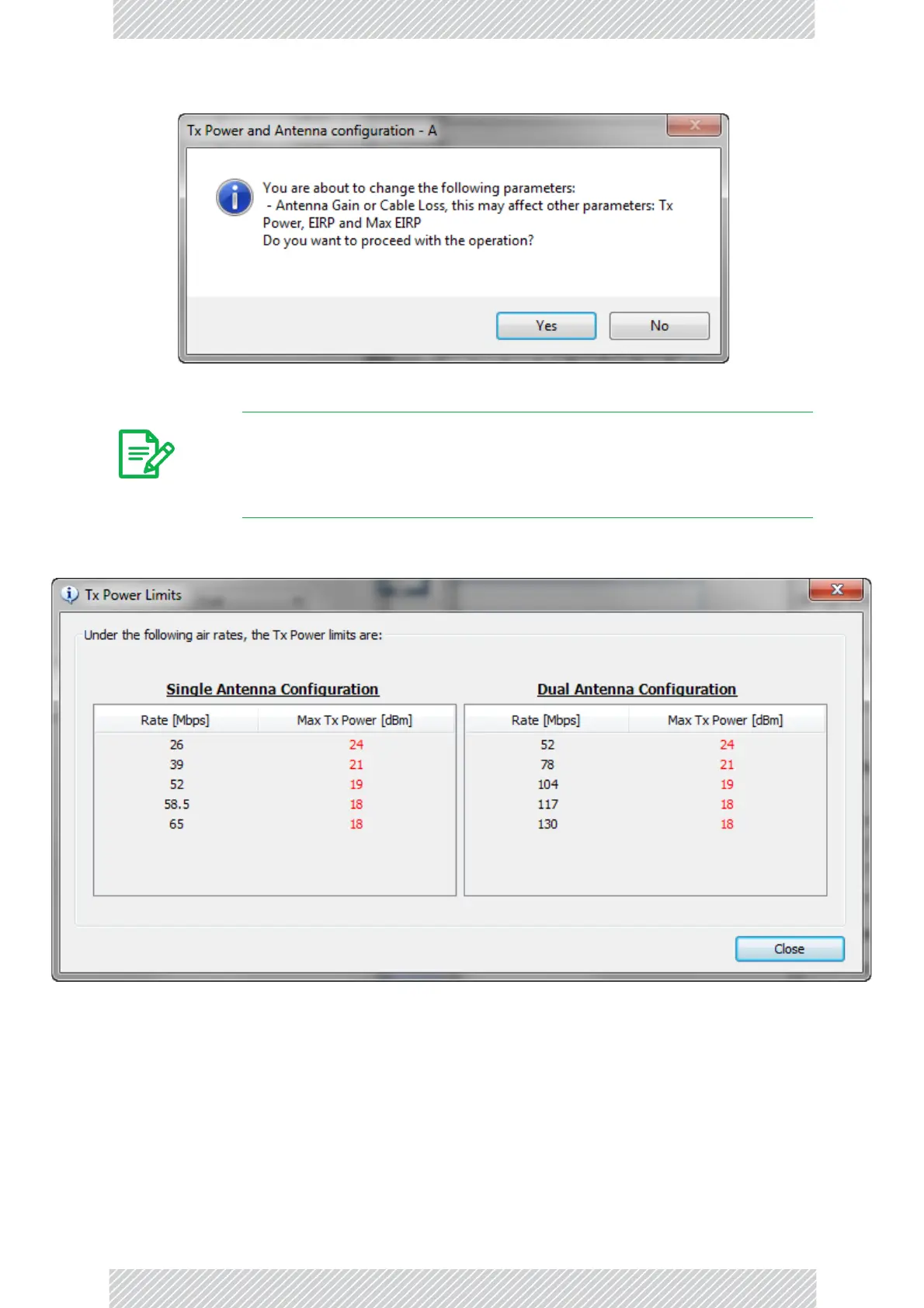

Figure6‐13:Ant ennaparameterschangewarning
Ifinequality(*)aboveisviolated,thenthefollowingwarningwindowisdisplayed:
Figure6‐14:TxPowerLimits
Thepreciserelationshipbetweentheitemsininequality(*)andthewindowof
Figure6‐11isasfollows:
• RequiredTxPower(perradio)willbeadjusteddowntothelesserofthevalue
enter edandmaxAvailableTxPower
• TxPower(system)ismaxAvailableTxPower+3(for2radios)
• MaxEIRPismaxRegEIRP.
Note
• TheMaxEIRPlevelwillbeautomaticallysetaccordingtotheselected
bandandregulation.
• TheEIRPlevelisthesumoftheSystemTxPowerandtheAntennaGain
minustheCableLoss.
