RADWIN2000UserManual Release2.8.30 6‐11

Installation

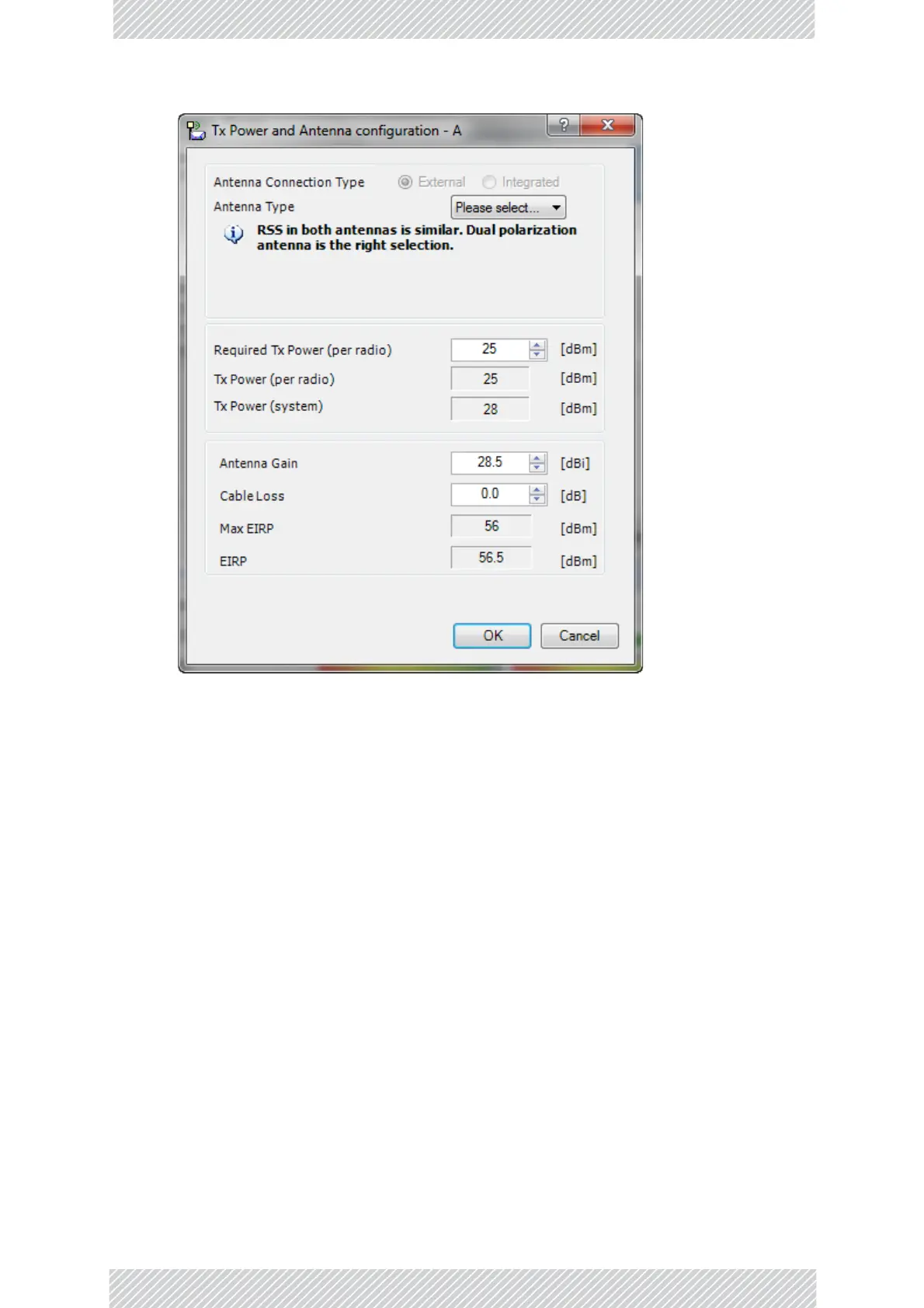

Figure6‐11:Ant ennaconfigurationdialog

2.Choosetheantennatypeandrequiredtransmission(Tx)powerforthefirstsiteand

clickOK.Youwillreceivethefollowingwarning:
