RADWIN2000UserManual Release2.8.30 19‐3

FCC/IC5.4/5.3GHzLinks:Bac kground Chapter19

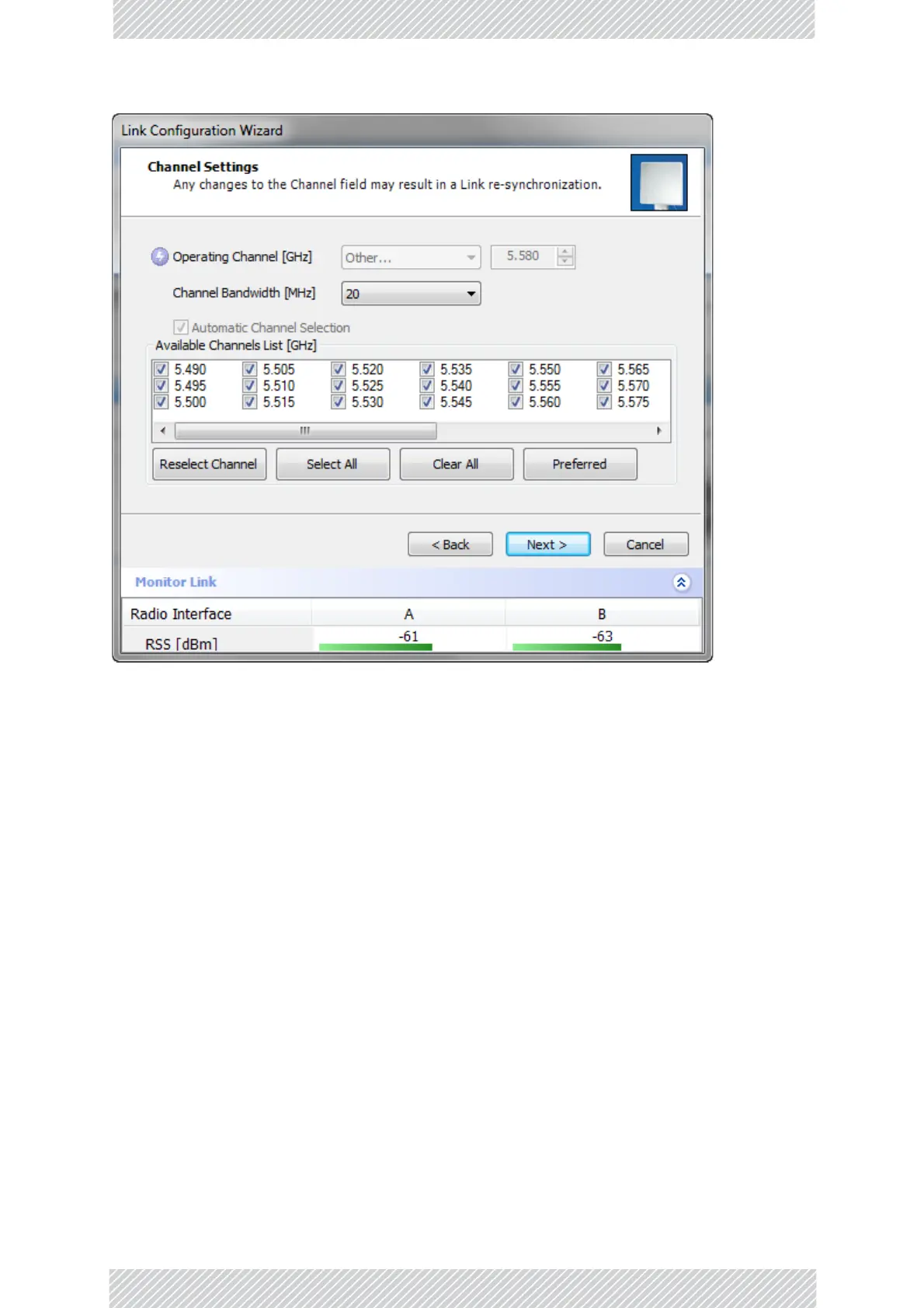

Figure19‐1:ChannelSelectdialogbox‐ACSpermanentlyenabled

Second:TheTxPowerwindowintheInstallation/Configurationwizardispresetincompliance

withtherelevantregulation,beitFCC/IC orETSI.TxPowerperradioissetto‐1dBmsothat

anODUwithtworadioshasasystemTxPowerasshown,of

dBm,reflectingthe

requirementtoadd3dBmtodoubleradioTxPower.Theonlyitemsyoucanchangeare

Ante nnaGainandCableLoss.

1–3+
