RADWIN2000UserManual Release2.8.30 19‐4

FCC/IC5.4/5.3GHzLinks:Bac kground Chapter19

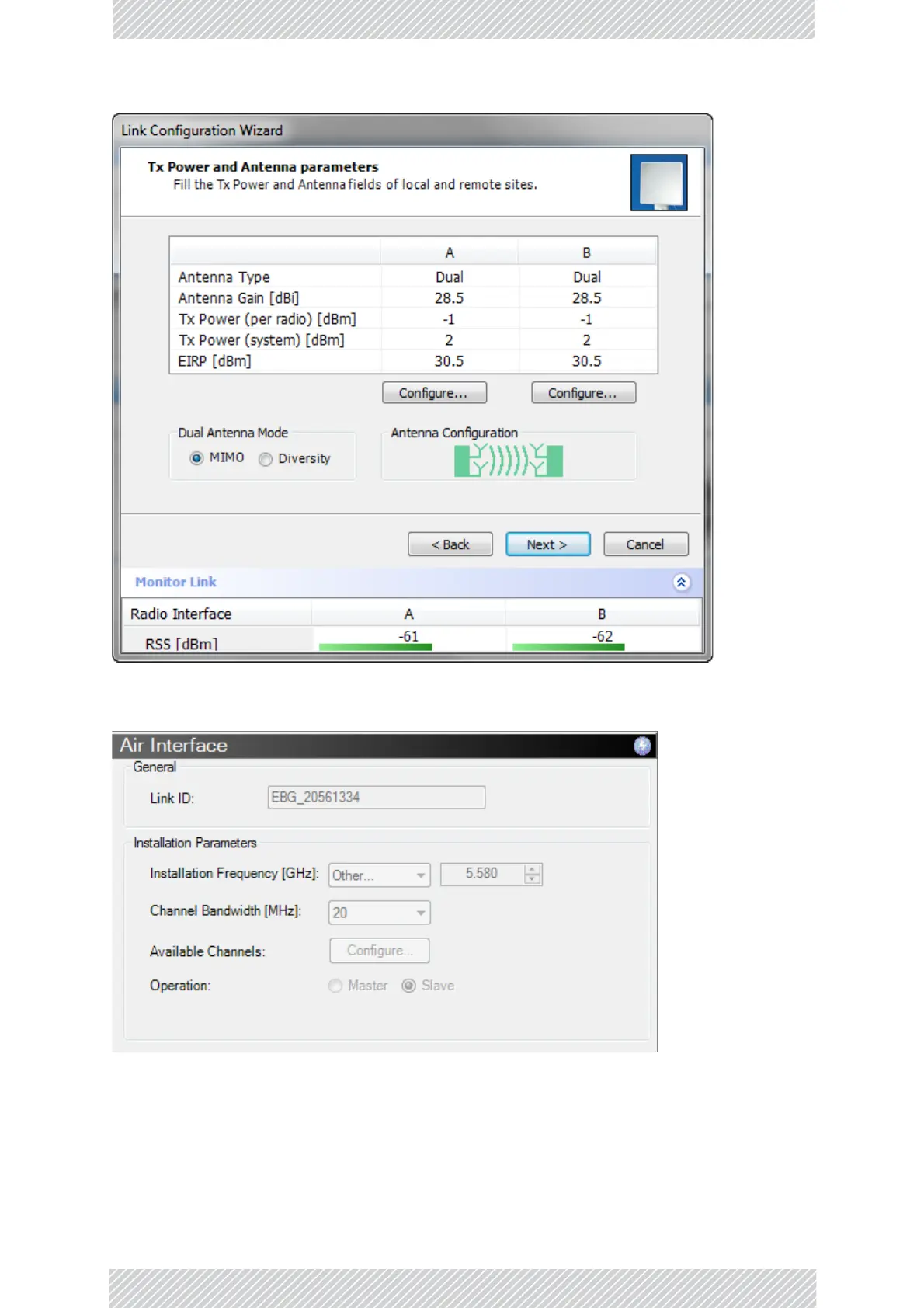

AftercompletingInstallation/Configuration,gototheSite:Location|AirInterfacewindows

foreachsiteinturn.

OnesidewillshowasMasterandoneasSlave.Thechoiceisinternal,purelyforthepurpose

ofestablishingthelinkandunderFCC/ICregulations,choosingthesitetocarryoutradar

detection.

TheODUsareeithersuppliedfromthefactoryreadyforuseat5.4GHzor5.3GHzFCC/ICor

alternatively,theycanbesetupforthesebandsusingtheRADWINManager.
