RADWIN2000UserManual Release2.8.30 15‐12

SwitchingbackfromtheSecondarytothePrimaryLink

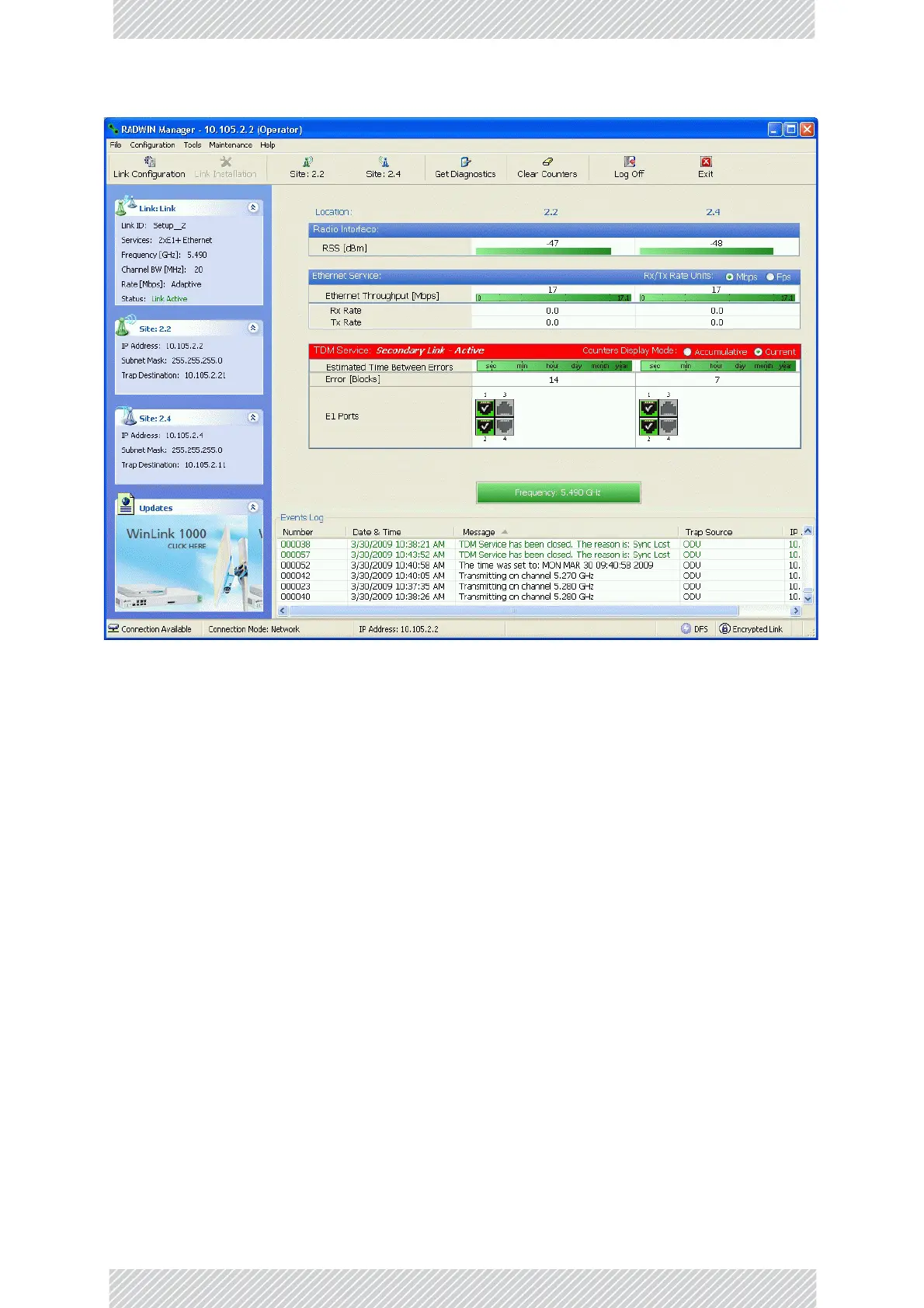

Figure15‐10:Secondarylinkoperatingaftertheswitchovertosecondary

AfterafewmomentstheTDMiconsbecomegreen.

SwitchingbackfromtheSecondarytothePrimaryLink

Switchingbackfromthesecondarylinktotheprimarylinkwilloccuraftertheprimarylink

hasbecomeandremainsfullyfunctionalforacontinuousperiodofatleastonesecond.

Followingreversionfromthesecondarylinktotheprimarylink,theManagermainwindows

shouldlooklikethis:
