RADWIN2000UserManual Release2.8.30 23‐2

Theprocedure

 Tochangethefactorydefaultband:

1.UsingtheIDU‐ODUcable,connectthePoEdevicetotheODU,ensuringthatthecable

ispluggedintothePoEportmarkedP‐LAN‐OUT.

2.ConnectthePoedevicetoACpower.

3.UsingaLANcable,connecttheLAN‐INportofthePoEdevicetotheEthernetportof

themanagingcomputer.TheODUwill commencebeepingataboutonceper

second,indicatingcorrectoperation.

4.LaunchtheRADWINManager.

5.LogonasInstaller.

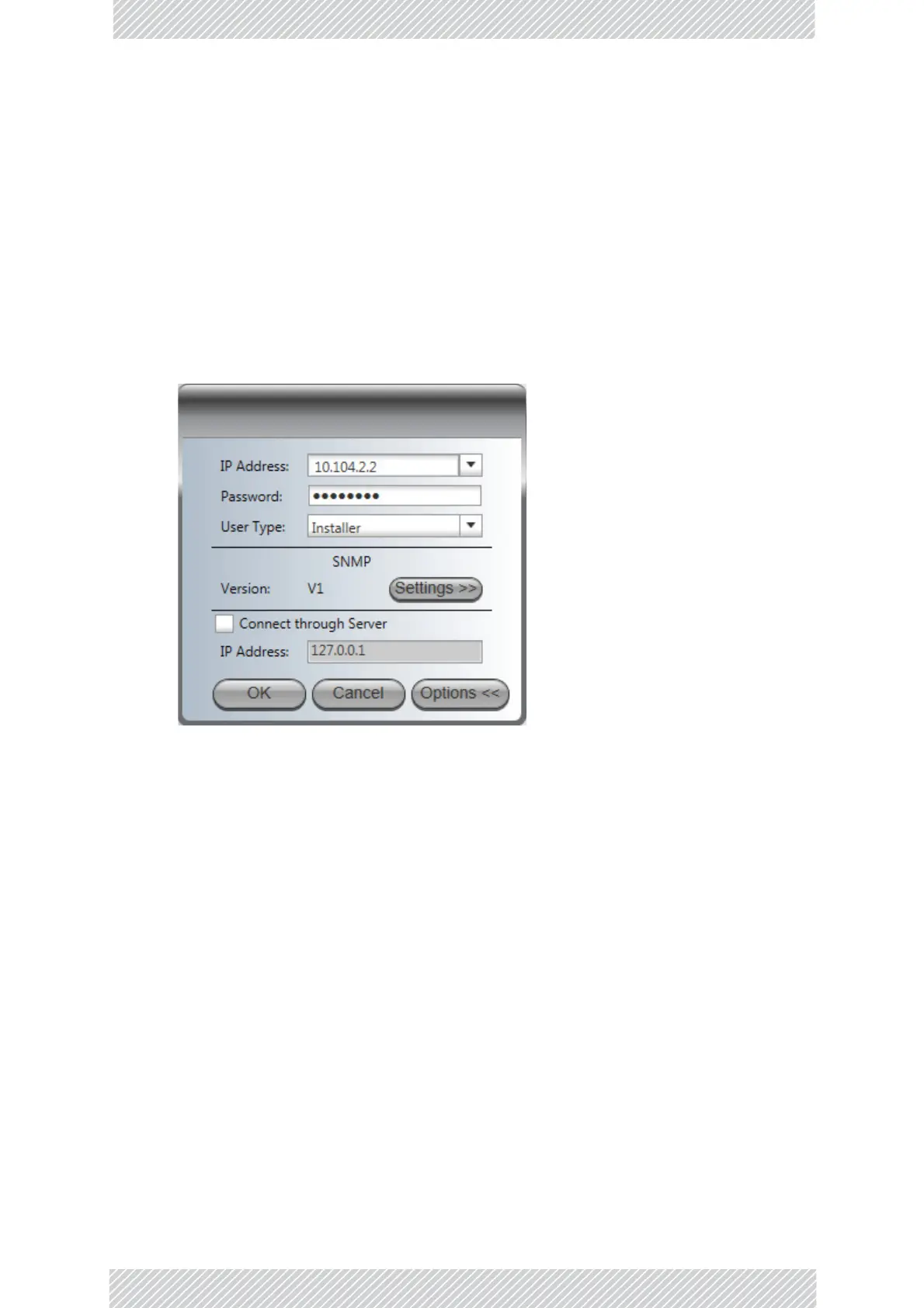

Figure23‐1:BecomingInstaller

6.Enterthedefaultpassword,wireless.Afterafewmoments,theRADWINManager

mainwindowappears:
