RADWIN2000UserManual Release2.8.30 6‐10

Installation

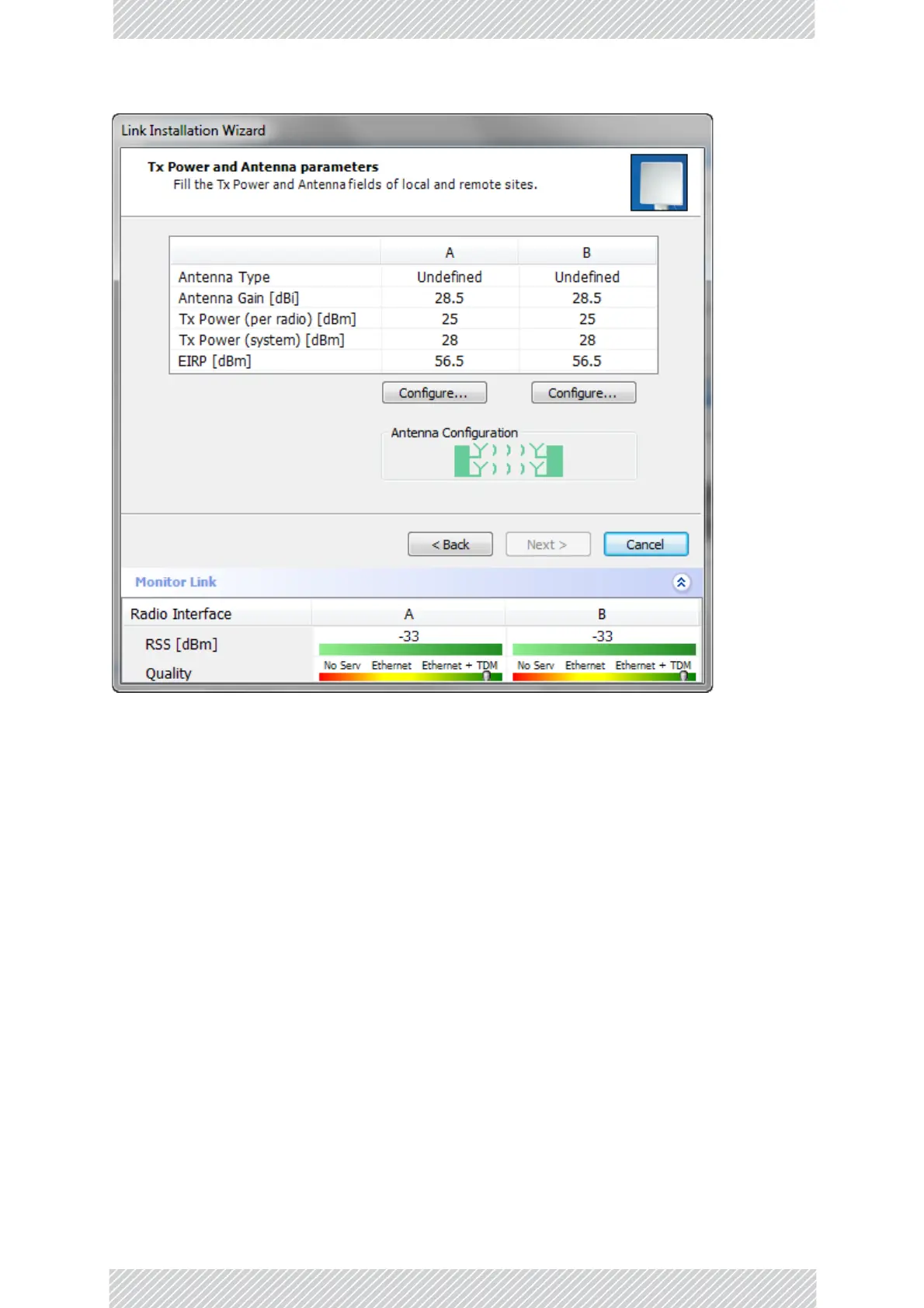

Figure6‐10:TransmissionPowerandAntennaParameters

ThechoiceofTxPower,antennagainandcableloss(betweentheradioandtheantenna)

determinestheEIRPandisaffecte dbysuchconsiderationsasradiolimitationsandregulatory

restrictions.

Beforeproceedingtoantennainstallationdetails,thebackgroundinformationinAppendixF,

SettingAntennaParametersshouldbeconsidered.

Theseparametersarecontrolledasfollows:

 TosetTxPowerandconfigureantennas:

1.ClicktheConfigurebuttonsinturntoconfiguretheantennasonbothsidesofthe

link.Eachoneoffersadialoglikethis:
