RADWIN2000UserManual Release2.8.30 29‐21

Other

NoticethatunderGbEsupport,theODUportmodeisalsoconfigurable.HereistheMonitor

panelfortheGbElink:

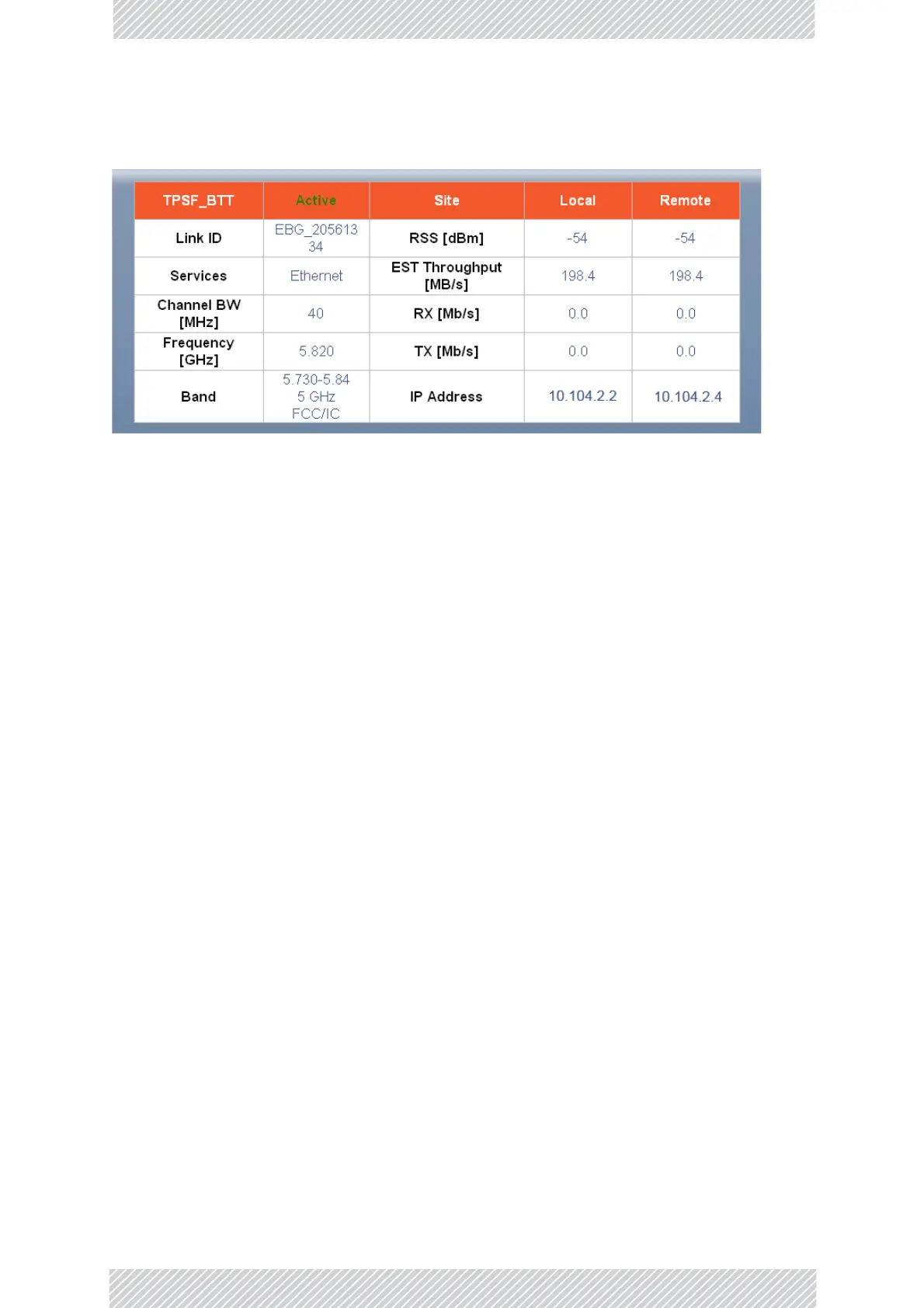

Figure29‐22:MonitorpanelforRADWIN2000Clink:Ethernetonly,GbEsupport

Notethe200Mbpsaggregatethroughputinbothdirections.
