RADWIN2000UserManual Release2.8.30 15‐7

InstallingaRADWINMHS

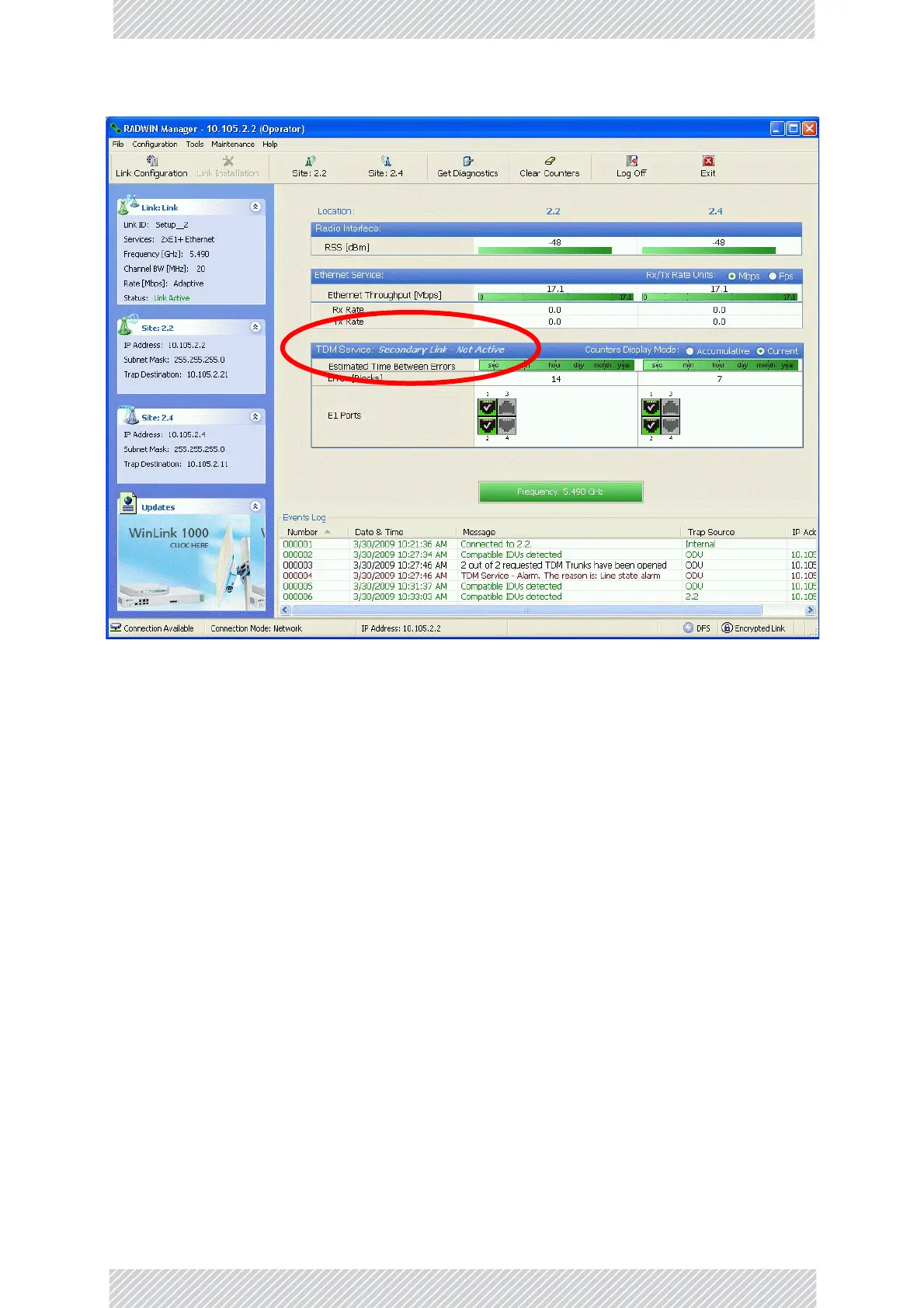

Figure15‐6:Thesecondarylinkundernormaloperation

Toseewhathappensfollowingacut‐overfromtheprimarylinktothesecondarylink,you

needtohaverunningtwocopiesoftheRADWINManager–oneloggedintotheprimarylink,

andoneloggedintothesecondarylink.

Herethen,isthesituationafteracut‐overtothesecondarylink:

Fortheprimarylink,thefollowingwindowwillappearforafewseconds:
